Backhoe Excavator


PRICE: $8,799.00 (inc GST)

Paddock Machinery offers extremely high quality equipment at affordable prices. Ideal for professional and trade applications, when buying Paddock brand you can rest assured you're getting a heavy duty proven design that won't let you down.

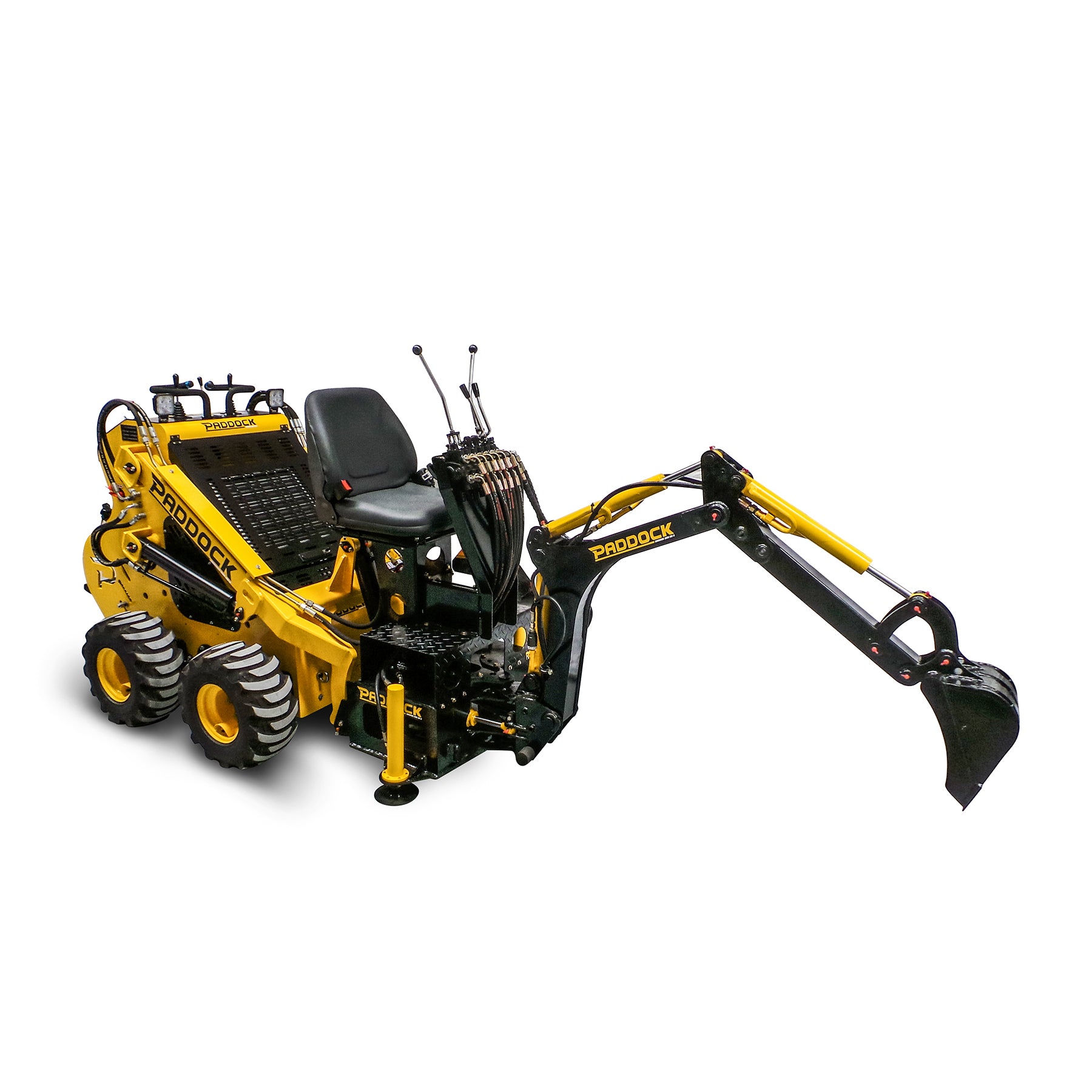

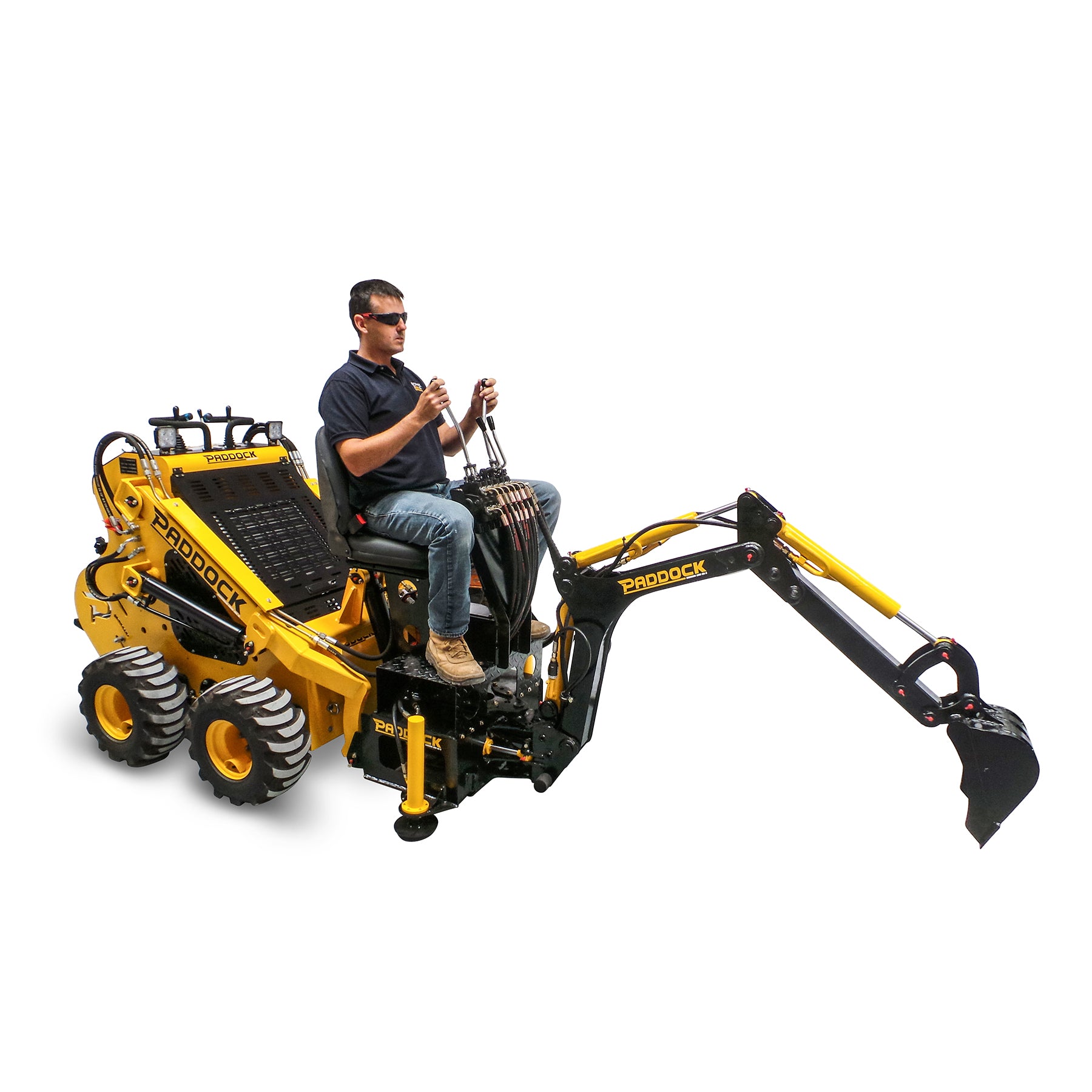

'Paddock' Backhoe Attachment

The Paddock range of mini loaders are proving to be the most versatile mini loader on the market and the huge range of accessories and attachments allows more and more trades to take advantage of the full capabilities from a single machine.

The backhoe attachment turns your mini loader into a digging machine capable of not only trenching but also full scale excavations. This unit will dig to depths of 1360mm with a maximum dump height of 1.45m allowing utilities and trailers to be loaded with one machine and action. The powerful hydraulics ensure ample digging force for typical operations.

Whilst this is a Paddock branded attachment it is suitable for use on other brand machines, users should take care to ensure the machine has mass to accommodate this size an attachment before proceeding. The Paddock loaders are larger and heavier then many competing brands with higher hydraulic pump capacities making them suitable and compatible with such size attachments. This implement has a dry weight of over 220kg which gives an indication of the construction strength and quality.

The ability of the backhoe digger attachment to swing both left of right makes it extremely versatile and the simple controls means it doesn't take long for the most novice operator to start excavating dirt like a professional.

These units are palletised and can be shipped around Australia with ease. For further information or to view a demonstration of this attachment, call or email us.


Backhoe Specifications
Weight (empty) ~220 kg
Dimensions 1200 x 1195 x 1600 mm
Bucket Width 270mm
Bucket Capacity 0.015m3 or 15L
Max. Dumping Height 1453 mm
Max. Digging Depth 1360 mm
Swing angles 50 degree left and 60 degree right
Bucket Lifting/Digging Force 33,000 N

Industry standard design

Hitch Overall size: 1200mm W x 395mm H
Pin centre to Pin centre: 830 mm
Pin hole width: 120 mm

Hydraulic Connections Compatible with DNP flat faced connections
Warranty 12 months
