Construction

Core Drill Stands & Rigs

SKU: PCDR250A

PRICE: $649.00 (inc GST)

The Paddock Machinery range of core drilling equipment is unrivaled in the industry. Built to outperform and outlast. These core drill stands are compatible with a range of core drills and drill bits. For the perfect setup pair with the Paddock range of core drills, vacuum pumps and drill bits. The stands are light weight, with wheels making them portable. The strong alloy and steel construction ensures they are durable and robust. Models are available with vacuum bases or standard bolt down style bases. Great for use in a range of construction, plumbing and building applications. Built for tradies - Priced for DIYers.

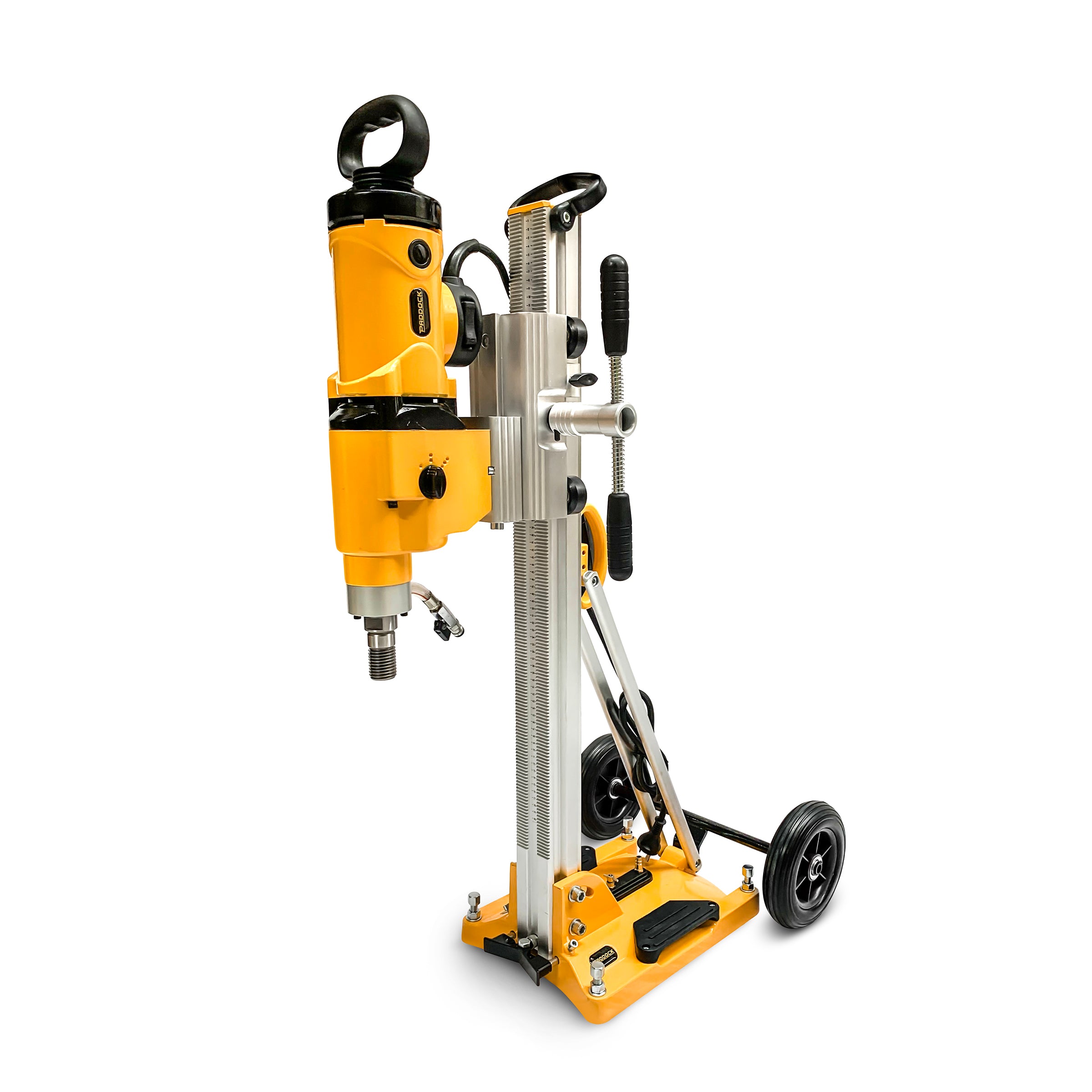

Paddock™ Core Drill Stands
  • Heavy duty & durable
  • Light weight & portable
  • Adjustment angle, 0 - 45°
  • Suits a range of drill bit diameters
  • Vacuum and bolt down bases
  • Simple to service and maintain
  • Spare parts & service available



The Paddock range of core drill bases have quick connect motor plates which will work with a variety of core drills. Available in models that will fit core bit sizes up to 452mm without spacers (larger diameters can be used if spacers are fitted) and with vacuum bases or bolt down style bases. The vacuum bases come with quick connect air fittings and vacuum bleed valves. Constructed from the finest materials and machined to precision. The alloy masts allow good travel length as well as adjustments in operating angle up to 45 degrees. Like all of the Paddock range the core drill stands are backed by our Australian warranty and have full parts and service support.

Core Drill Stand
PCDR250A PCDR350A PCDR440A
Brand Paddock™ Machinery Paddock™ Machinery Paddock™ Machinery
Max. Bit Diameter
252mm (without spacers)
352mm (without spacers) 452mm (without spacers)
Operating Angle 0 - 45°
0 - 45° 0 - 45°
Travel Length
600mm 650mm 650mm
Construction Alloy mast. Steel base. Alloy mast. Steel base. Alloy mast. Steel base.
Features

Brake on roller carriage

Quick connect motor plate

Drill bit centering device

Vacuum relief valve

1/4" quick connect air hose fitting

'One for all' lever with 19mm hexagon socket

1:1 Cranking Gear

Brake on roller carriage

Quick connect motor plate

Drill bit centering device

Vacuum relief valve

1/4" quick connect air hose fitting

'One for all' lever with 19mm hexagon socket

1:1 Cranking Gear

Brake on roller carriage

Quick connect motor plate

Drill bit centering device

'One for all' lever with 19mm hexagon socket

1:1 Cranking Gear

Includes

Wheel set

Vacuum base

Roller carriage

Wheel set

Vacuum base

Roller carriage

Wheel set

Bolt down base

Roller carriage

Warranty 12 Months
12 Months 12 Months
Compatible Paddock™ Core Drilling Equipment

We also stock a range of core drilling equipment which can be used with these drill stands.

Core Drill Motors

Paddock offers a range of core drill motors suitable for use with these core drill stands. Pair the drill motors as follows:

Drill Model PCD2200W - use with drill stand model PCDR250A. This drill stand is for drill bits up to 252mm (without spacers) and has the vacuum base incorporated.

Drill Model PCD3300W - use with drill stand models PCDR350A or PCDR440A. The 350mm drill stand has the vacuum base and is for core bits up to 352mm (without spacers). The 440mm model has a conventional bolt down base and can handle larger diameter core bits.

Click here for more information on the core drill motors.

Core Drills AustraliaCore Drill MotorConcrete Core Drill Electric


Core Drill Vacuum Pumps

The Paddock core drill vac pump is suitable for use with the PCDR250A - 250mm drill stand with vacuum base and the PCDR350A - 350mm drill stand with vacuum base. Suitable for use with both the 2200W or 3300W drill motors. The vacuum pumps securely hold the drill stand in place for safe, accurate coring.

Click here for more information on the core drill vacuum pumps.

Core Drilling Vacuum PumpVac Pump for Concrete DrillsCore Drilling Package Electric

Diamond Core Drill Bits

By using the industry standard 1-1/4" drive head many brands of core drill bits can be used. The Paddock™ range of core drill bits are premium quality, economical and our recommended choice.

Click here for more information on Paddock core drill bits.

Concrete Diamond Core Drill BitsConcrete Coring Drill BitsDiamond Coring Bits

Portable Water Tanks

Paddock™ offers a portable, rechargeable, electric water supply tank on a trolley. These are ideal for wet coring applications and dust suppression.

Click here for more information on the water tank trolleys.

Water dust suppression trolley tank electric

Core Drilling Applications:

  • Construction & building projects
  • Plumbing & drain holes
  • Electrical lines
  • Gas lines and pipes
  • Water pipes and sewerage
  • Heating, ventilation & air conditioning pipes
  • Structural testing
  • Man holes
  • ...and more
