Construction

Double Drum Roller

SKU: SDDR640

PRICE: $22,999.00 (inc GST)

Scintex is proud to offer Paddock construction equipment to the Australian market. These industrial grade machines are optioned up with high end componentry designed for hard Australian working conditions. Favored by equipment hire rental companies due to their heavy duty construction and Honda reliability, these petrol engine drum roller compactors will not disappoint.

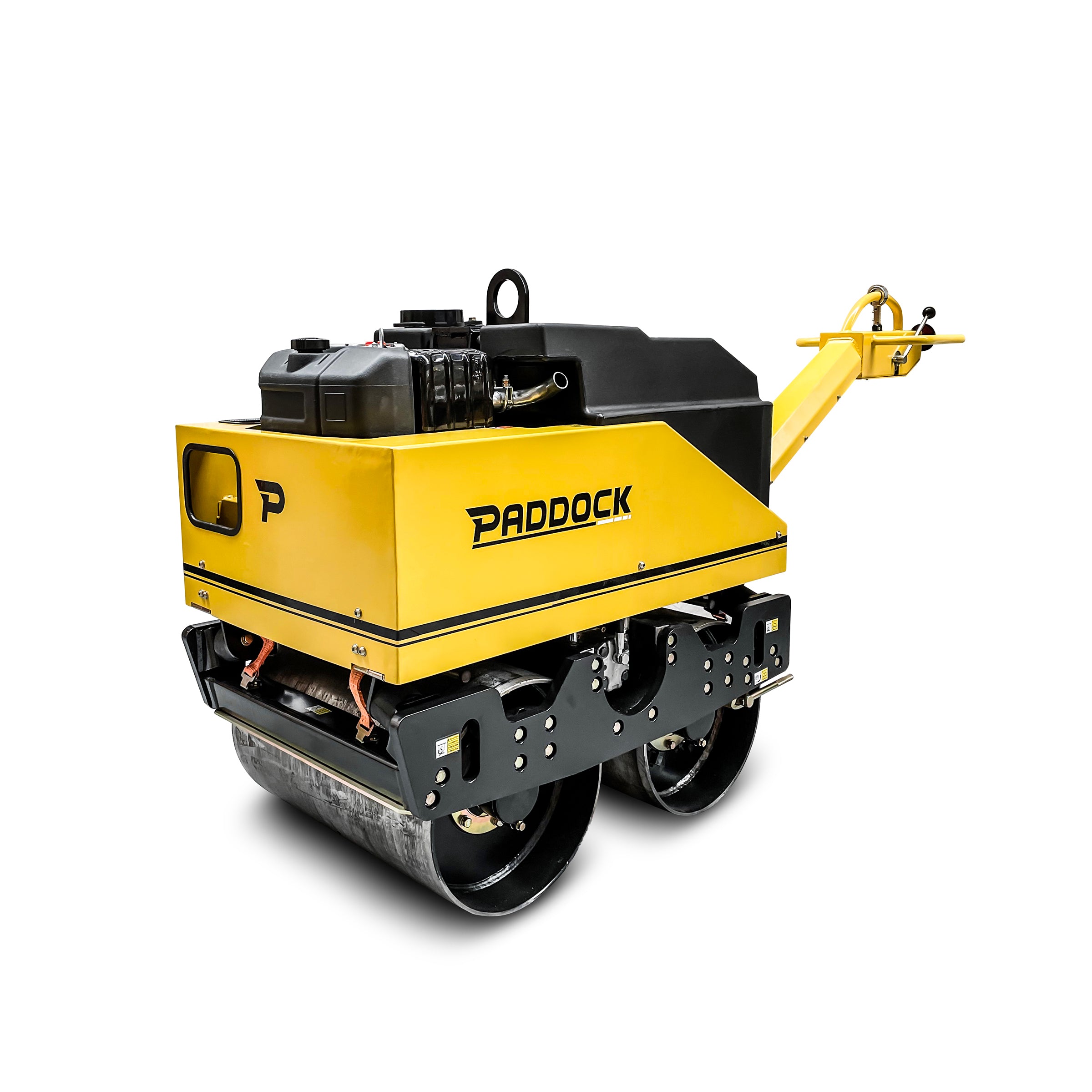

Lombardini Diesel Engine Double Drum Vibrator Roller

The double drum roller can be used on a range of building projects such as roads, paths, walkways, carparks, general building sites and gardens. Its heavy duty construction and weight combined with the in-built exciter vibrator ensures you will achieve the professional finish your clients demand.

Ideal for compaction of all gravel and asphalt surfaces, soil and sand meaning this machine is extremely versatile.

It features a fully hydraulic operating system system with pumps and motors providing infinitely variable working travel speed and vibration. The design eliminates the need for regular periodic adjustments and changes compared to outdated chain driven rollers. Suitable for use by a single operator with easy to access and ergonomically located controls.

Fitted to these machines is a imported Italian Lombardini LD440 diesel engine.  These are high quality engines and commonly used in high end construction equipment of this size.

The machine is compact and well designed allowing for small approach distances to curbs, walls and other obstacles. The smooth rollers feature beveled edges to eliminate working marks on the surface.

The unit features a large onboard, non corrosive water storage tank. Using the roller with water helps compaction and also reduces dust generation.

Dual scrapper bars on each drum help to ensure a clearn surface when working on asphalt.

Don't Compromise Quality



Lombardini diesel double drum roller

Applications:

  • Hire and Rental businesses
  • Construction
  • Piping and Pipeline contractors
  • Councils / Shires
  • Site preparation
  • Paths, lane-ways, driveways, gutters, roads
  • Gardens and fields



Double Drum Roller Compactor Specifications
Engine Type  Lombardini LD440 Diesel
Power (hp) 11
Start Mechanism Dual Electric / Recoil
Fuel Type Diesel
Weight (kg) 718
Fuel Tank Volume (L) 4.3
Drive System Hydraulic with oil cooler
Static Linear Force N/cm
54
Centrifugal Force kN 21
Frequency vpm (Hz) 3300 (55)
Travel Speed (km/hr) 0-3.6
Drum 650 mm wide x 404mm diameter
Water tank capacity (L) 65
Warranty 2 yrs
Features

Hydraulic pump and motors - no chains makes for low servicing requirements

Hydraulic vibration control is infinately variable

Heavy duty thick drum walls

Corrosion resistant water reservoir

Bevelled drum edge eliminates markings on surface

Self-cleaning scrapers prevent the build-up of asphalt

Ergonomically design height-adjustable handle for comfort and transport

Easy user controls

Mechanical park brake

Deadman control lever offers reverse protection

Anti-vibration controls ensure operator comfort

Easy access to diesel engine for servicing
