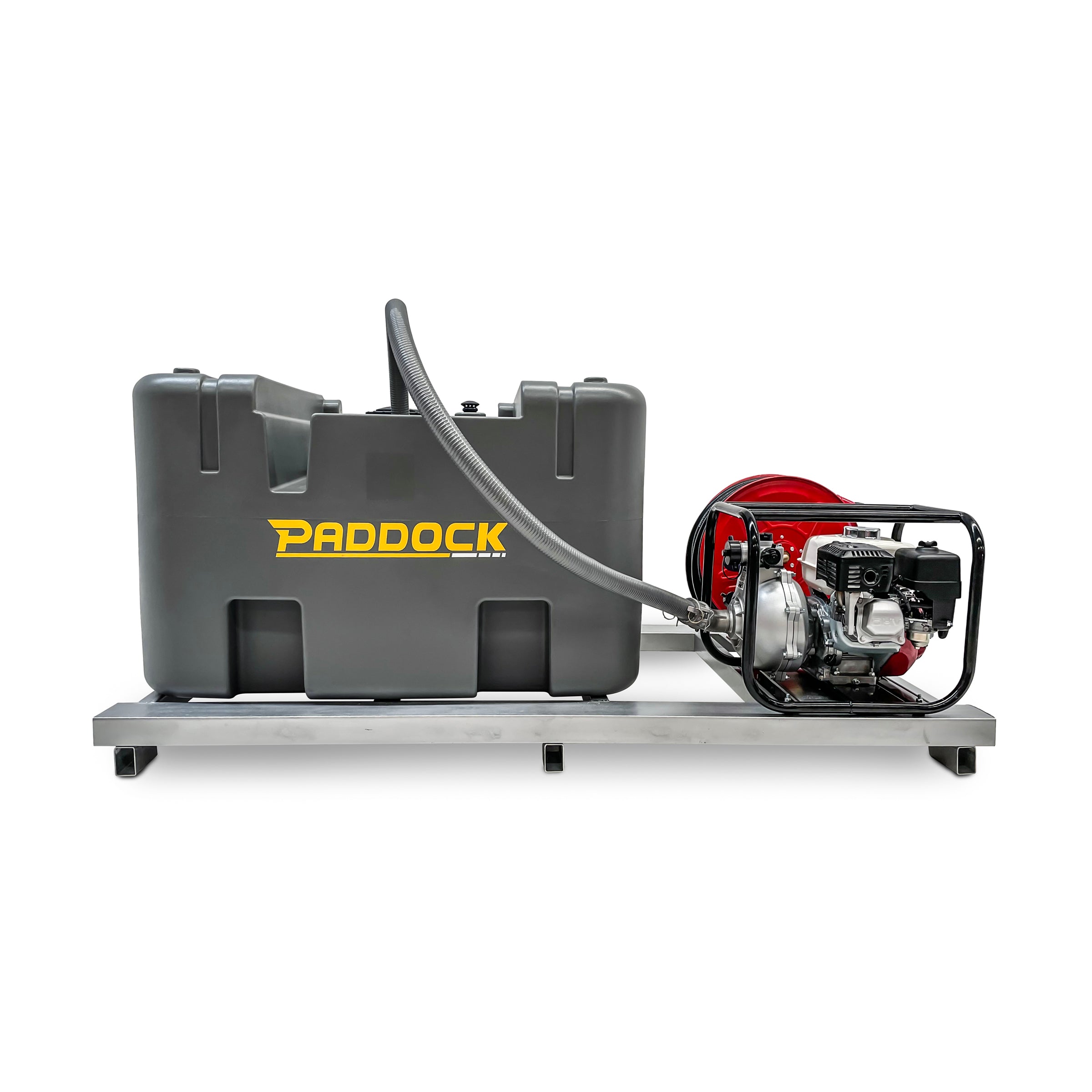

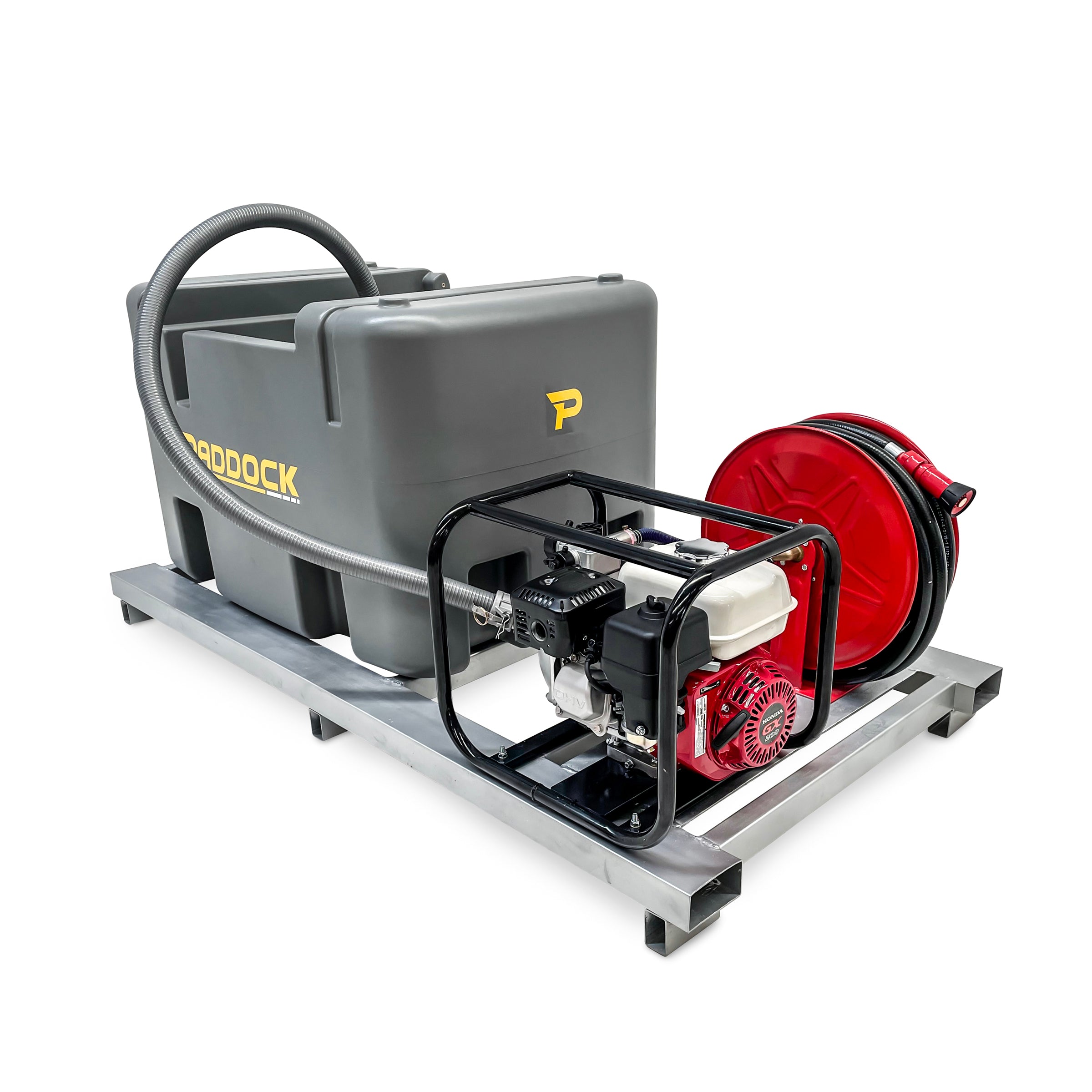

Portable Fire Fighting Tank Skid Features:

• Thicker tank walls with more raw material in the mould process
• UV stable materials offer long service life
• Tough poly construction eliminates seams, welds, cracking and corrosion
• Genuine Honda 4 stroke engine driven pump

• Hose reel makes hose storage and deployment a breeze

• Corrosion resistant skid makes for a strong design
• 3 yr warranty on tanks



Having your pump and reel mounted to a steel skid makes for a heavier duty design when compared to mounting directly to the poly tank. This makes these skids suited to the harsh Australian outback where other equipment tends to rattle itself to pieces.

The Paddock Difference

Honda GX200 Engine Pumps and Quality Components

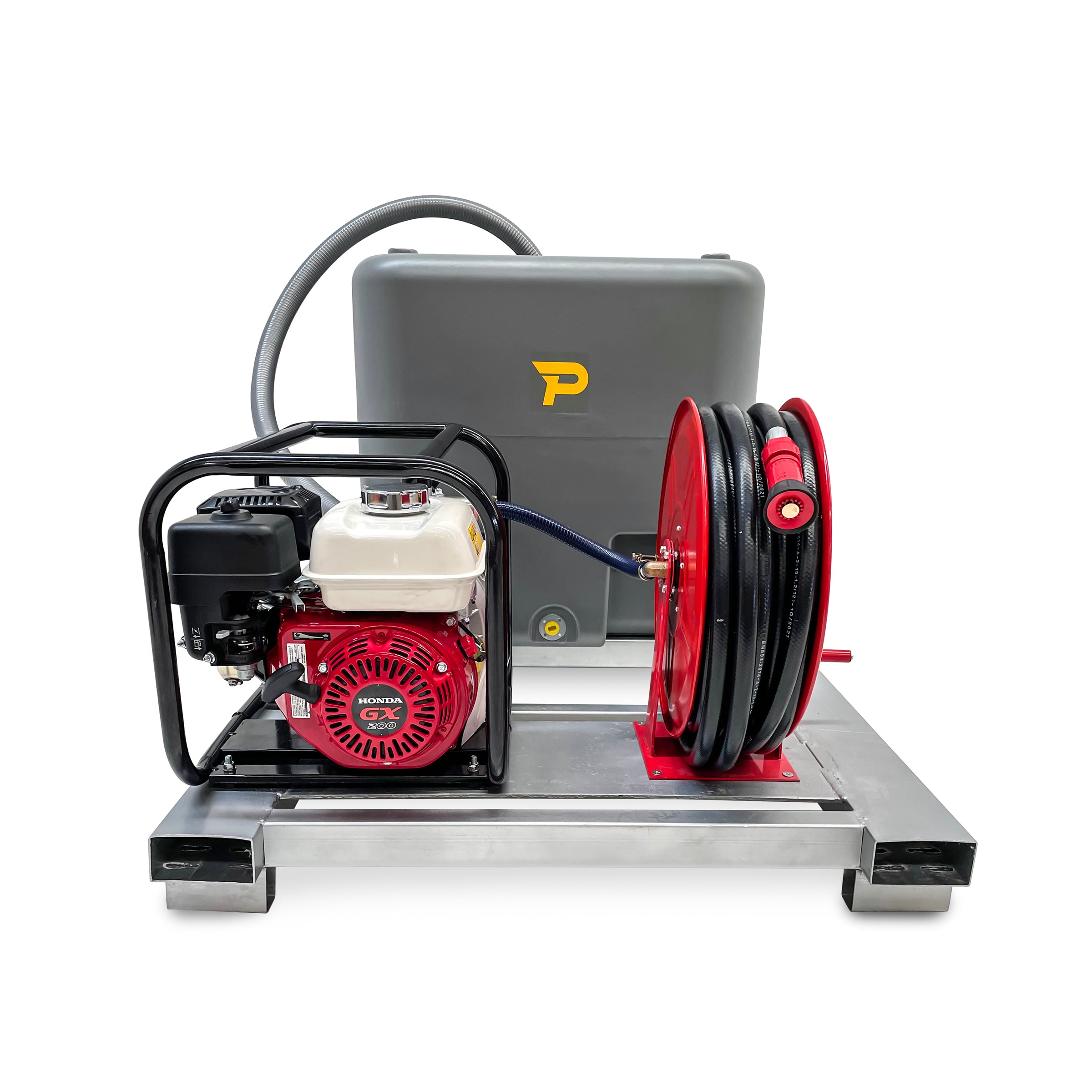

Mounted to the skid is a quality Honda engine driven water pump. This pump is a high pressure model suited to firefighting applications meaning it delivers greater discharge pressures when compared to ordinary transfer pumps. With a larger GX200 easy start engine, users can expect performance and reliability. Honda engines are well supported all over the country and parts and servicing is simple if ever required.

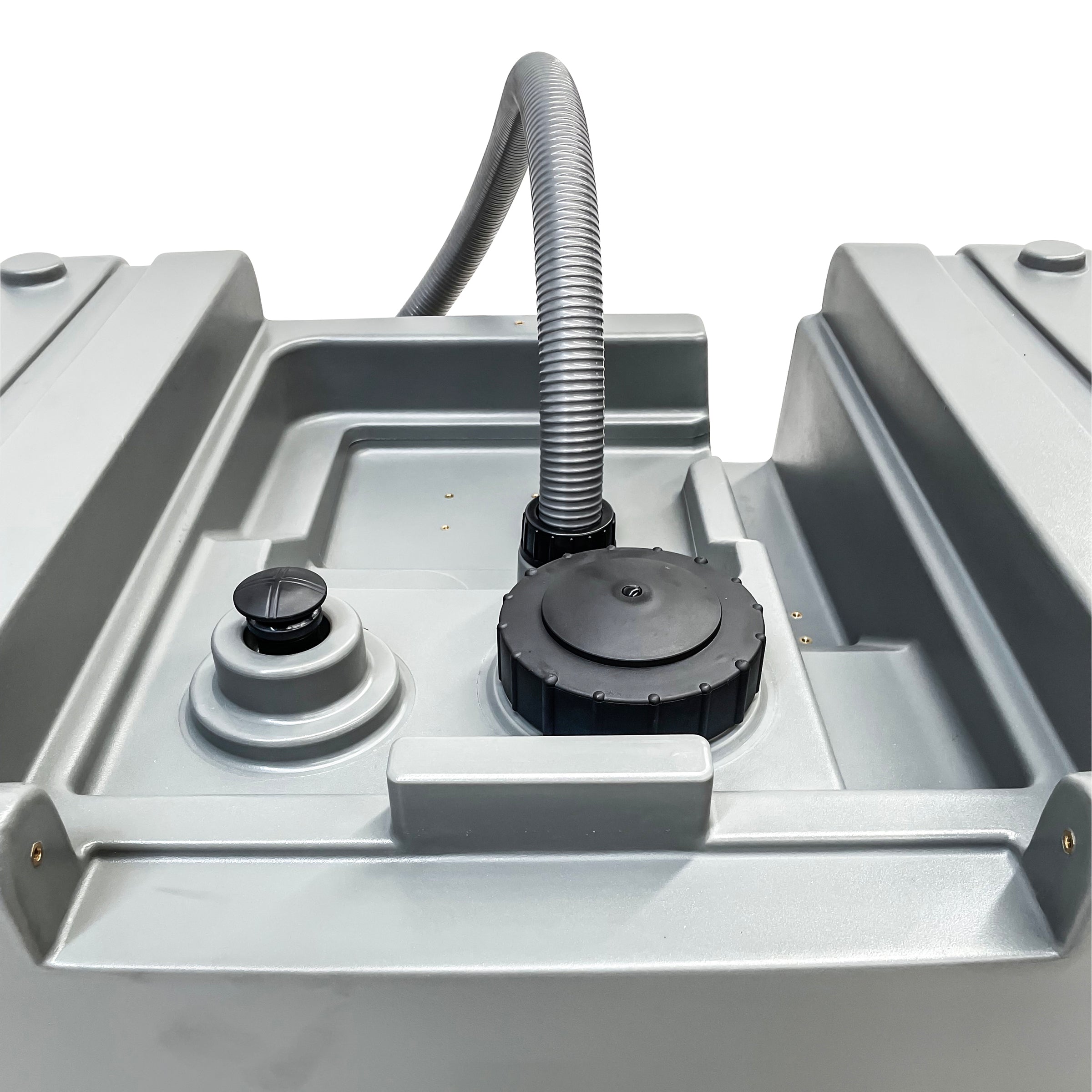

The skid has been designed with a 3m reinforced suction hose which can be removed from the tank if water is to be drawn from a nearby tank. The pump inlet is also supplied with quick cam lock connections meaning users can swap the suction hose to a different location if they wish. An optional extra is to order a longer suction hose allowing the pump set to draw directly from a dam or similar water source. The onboard pump can then be used to fill the onboard tank which is a handy feature.

Roto Moulded Tanks

These tanks are roto-moulded from high quality UV stabilised plastics to deliver a seamless and virtually leak proof storage solution. When designing plastic tanks many companies cut corners and leave out the expensive ingredients which make the plastic resistant to UV attack. The Paddock tanks have UV blockers and carbon black additives that give a high UV resistance. These tanks also use more raw material to deliver thicker walls and more strength and resistance to wear and tear and whilst this makes the tanks a little heavier, it's well worth it for the benefits.

Hose Reel and Nozzle

Included is a hose reel which neatly stores and protects 30m of 3/4" hose. The reel allows for fast deployment in the case of an emergency. The hose reel includes a manual handle so it's simple to clean up once done.

Fitted to the hose is a adjustable nozzle which is critical for successful fire fighting.

Specification	SPFT400P
Volume	400L
Dimensions (LxWxH)	1850 x 960 x 800mm
Pump Details	Honda GX200 Petrol Engine driven High Pressure
Pump Starter	Recoil
Max. Pump Pressure	735 kPa (106 psi)
Max. Pump Flow	200 L/min
Typical Pump Flow	Highly dependent on nozzle setting 20-40 L/min is common
Hose Reel	30m of 3/4", manual wind handle, includes spray nozzle
Pump Suction Hose	3m of 1-1/2"
Nozzle	Automatic with swivel
Weight	~150 kg
UV Stabilised	Yes
Warranty	3 yrs on Tank 2 yrs on Honda Engine 1yr on sundries

Optional Extra:

We can supply additional suction hose and fittings that allow users to switch the pump suction connection. This can be handy if you plan to use the onboard pump to fill the tank drawing from a water source such as a dam. The pump has a maximum suction lift of 7m vertically meaning in many cases if you can park next to a dam the pump will prime.
