Water Transfer Pumps

SKU: SHWPWB10X

PRICE: $1,049.00 (inc GST)

Water transfer pumps manufactured by Paddock Machinery. Paddock has coupled a Honda engine, a brand synonymous with reliability, to a range of heavy duty cast alloy pumps to give a great pump/engine combination. These units are ideal for many water transfer applications including moving water for livestock, emptying pools, flooded basements and even handy on construction sites.

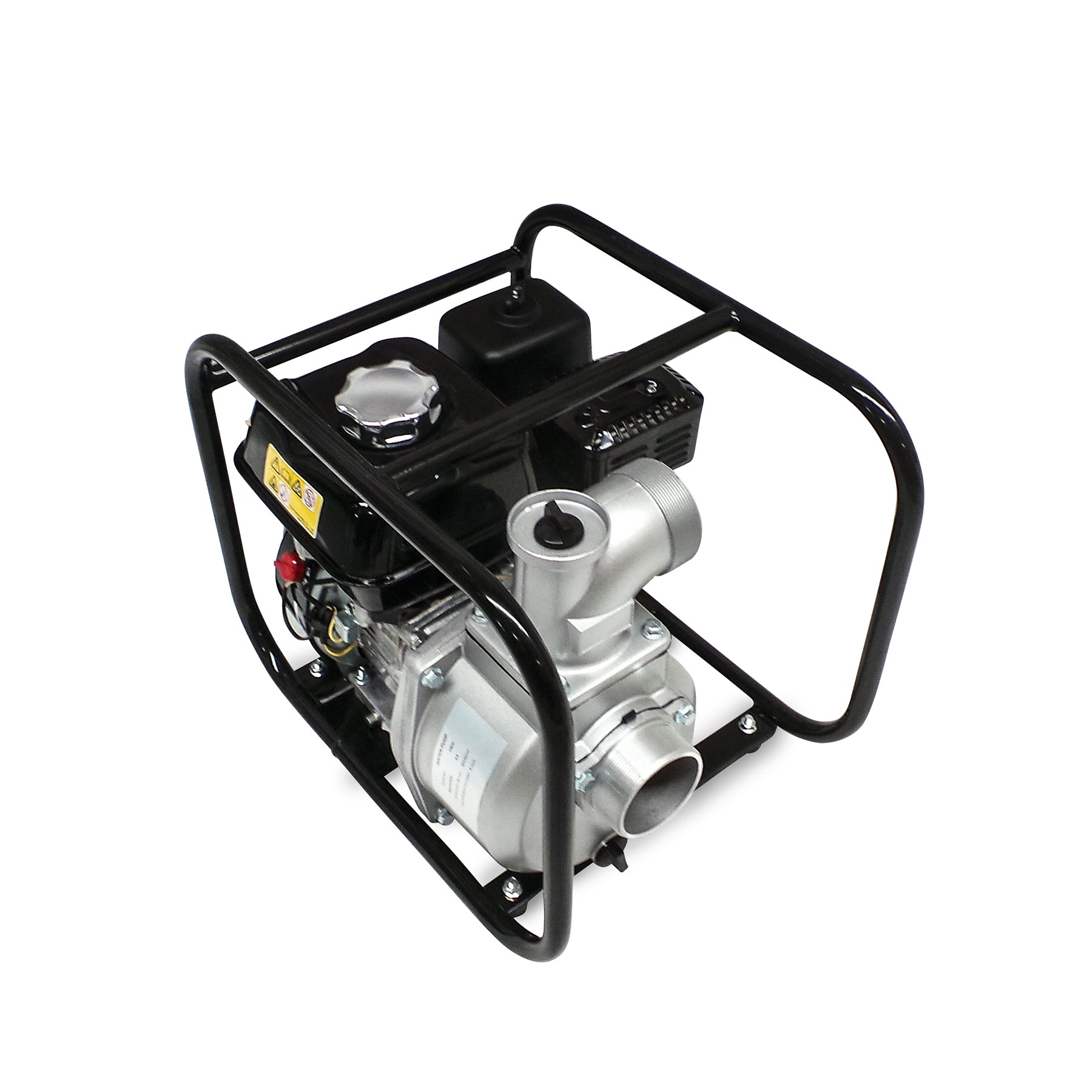

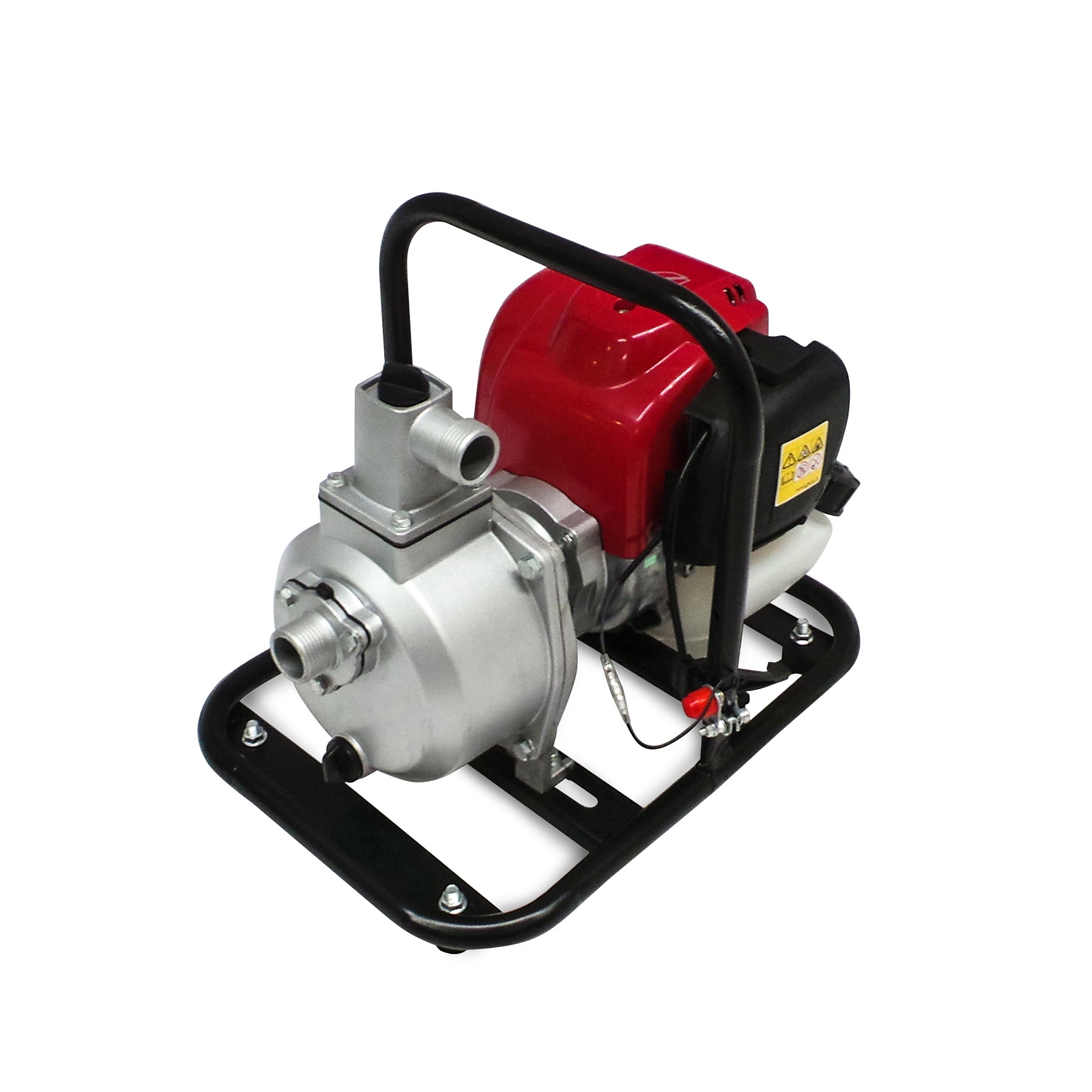

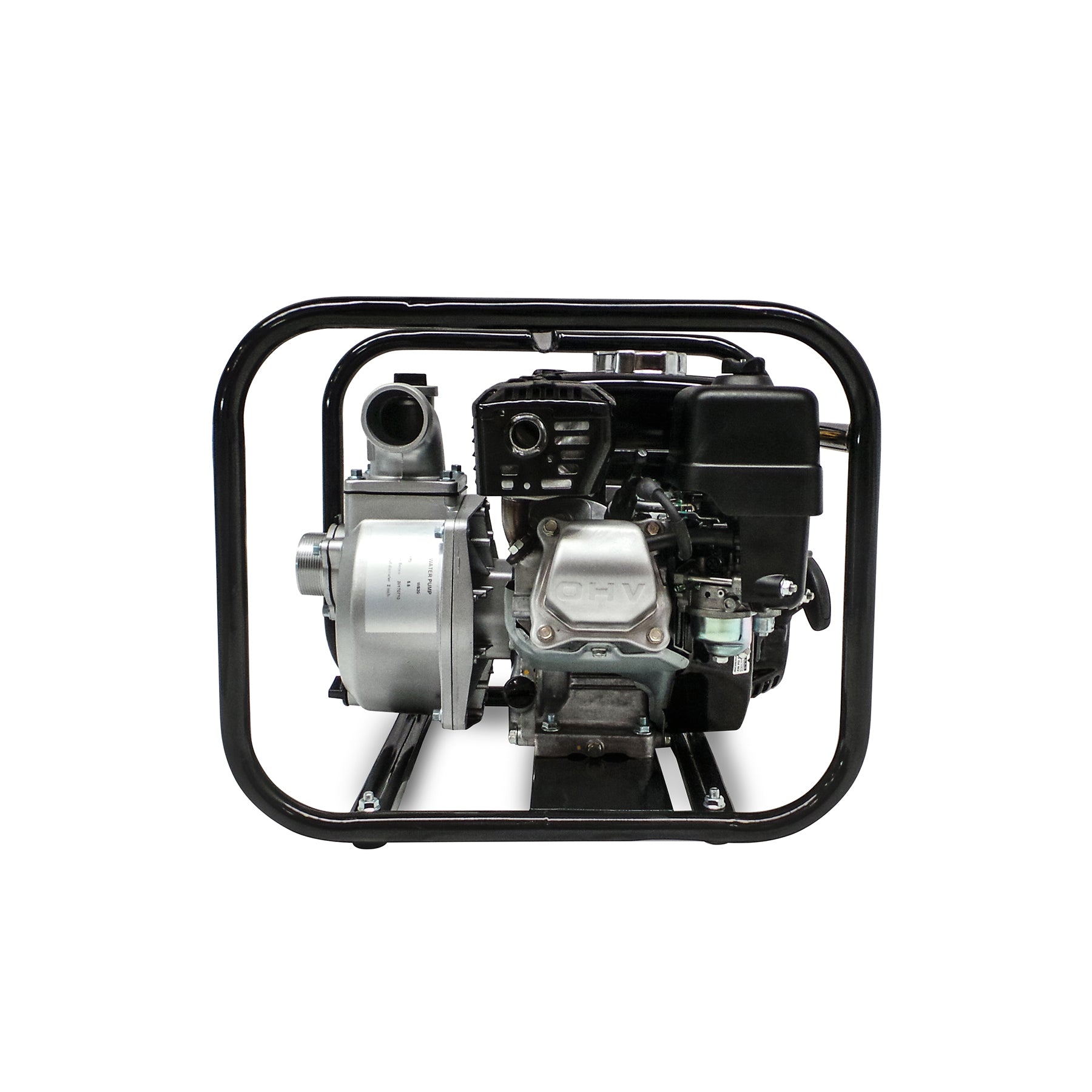

Honda Engine Driven Water Transfer Pump

  • High volume water moving applications
  • Available in 1", 2",  3" and 4" pump sizes
  • Steel roll-over cage protection
  • Pump outlet can be rotated to suit preferred installation
  • Quality Honda unleaded petrol engines
  • Electric start available on some models

Pump Details:

This range of pumps are considered a water transfer style of pump. This means they are great for high volumes of water movement however they will not produce the high discharge pressures of some other models. Water transfer pumps have very good suction lift capabilities meaning they can lift water from in ground dams or pits with ease. All of these pumps are capable of lifting water a maximum of 7m elevation on the suction side of the pump.

This style of pump requires initial priming with water but once there's water in the casing, they will typically re-prime with ease. To prime the pump, simply pour water into the top of the pump casing via the priming port, re-seal the pump casing and start the engine.

Engine Details:

Honda Water Pumps

The Honda GX series of 4-stroke commercial engines are world renown for being workhorse engines with extreme reliability. Honda engines are always easy to start and are very well supported with Honda dealers and spare parts kept in every corner of the continent. For a ultimate in reliability stick with the Honda GX series of engines.

Specifications 1" 2"  3"  4"

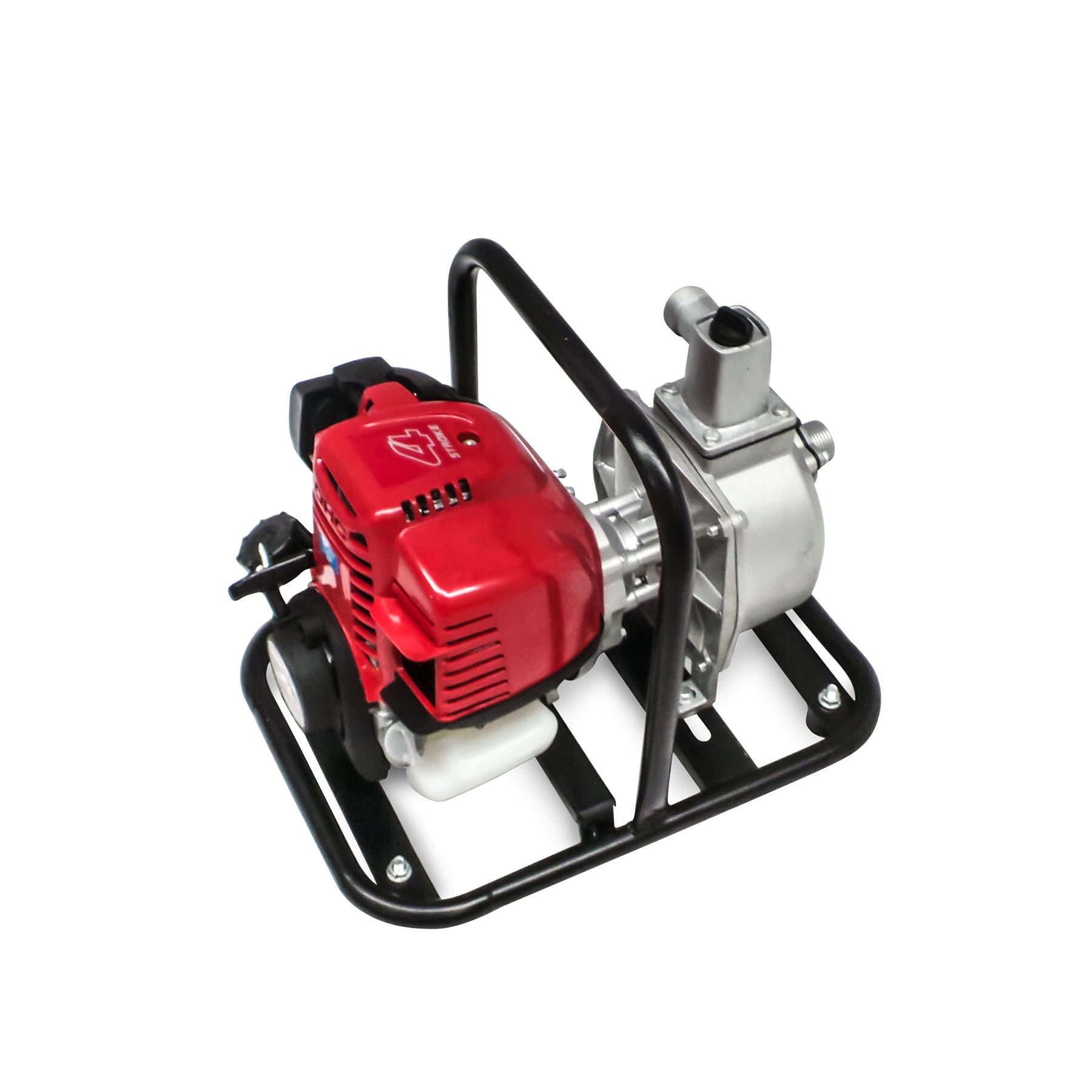

Honda Engine GX35  GX160 GX160 GX270
Engine Type  4-Stroke Commercial Series  4-Stroke Commercial Series  4-Stroke Commercial Series  4-Stroke Commercial Series
Engine Power 1.3 hp 4.8 hp 4.8 hp 8.5 hp
Fuel Unleaded Petrol Unleaded Petrol Unleaded Petrol Unleaded Petrol
Fuel Tank  0.63L 3.1L 3.1L 5.3L
Starter Recoil Recoil Recoil Recoil or Electric**
Pump Inlet / Outlet 25mm (1")  50mm (2") 75mm (3") 100mm (4")
Max. Flow (L/hr) 7,000  27,000 60,000 80,000
Discharge Head (m) 22 30 30 25
Discharge Pressure (Approx) 215 kPa (31 psi) 294 kPa (42 psi) 294 kPa (42 psi) 245 kPa (35 psi)
Max. Suction Lift 7m 7m 7m 7m
Wetted materials

NBR seals

Cast iron impeller

Aluminium pump casing



NBR seals

Cast iron impeller

Aluminium pump casing



NBR seals

Cast iron impeller

Aluminium pump casing



NBR seals

Cast iron impeller

Aluminium pump casing

Warranty  36 months Engine / 12 months Pump  36 months Engine / 12 months Pump  36 months Engine / 12 months Pump  36 months Engine / 12 months Pump

** Note: Battery and power leads are not included on the electric start model and and the responsibility of the customer to acquire.
