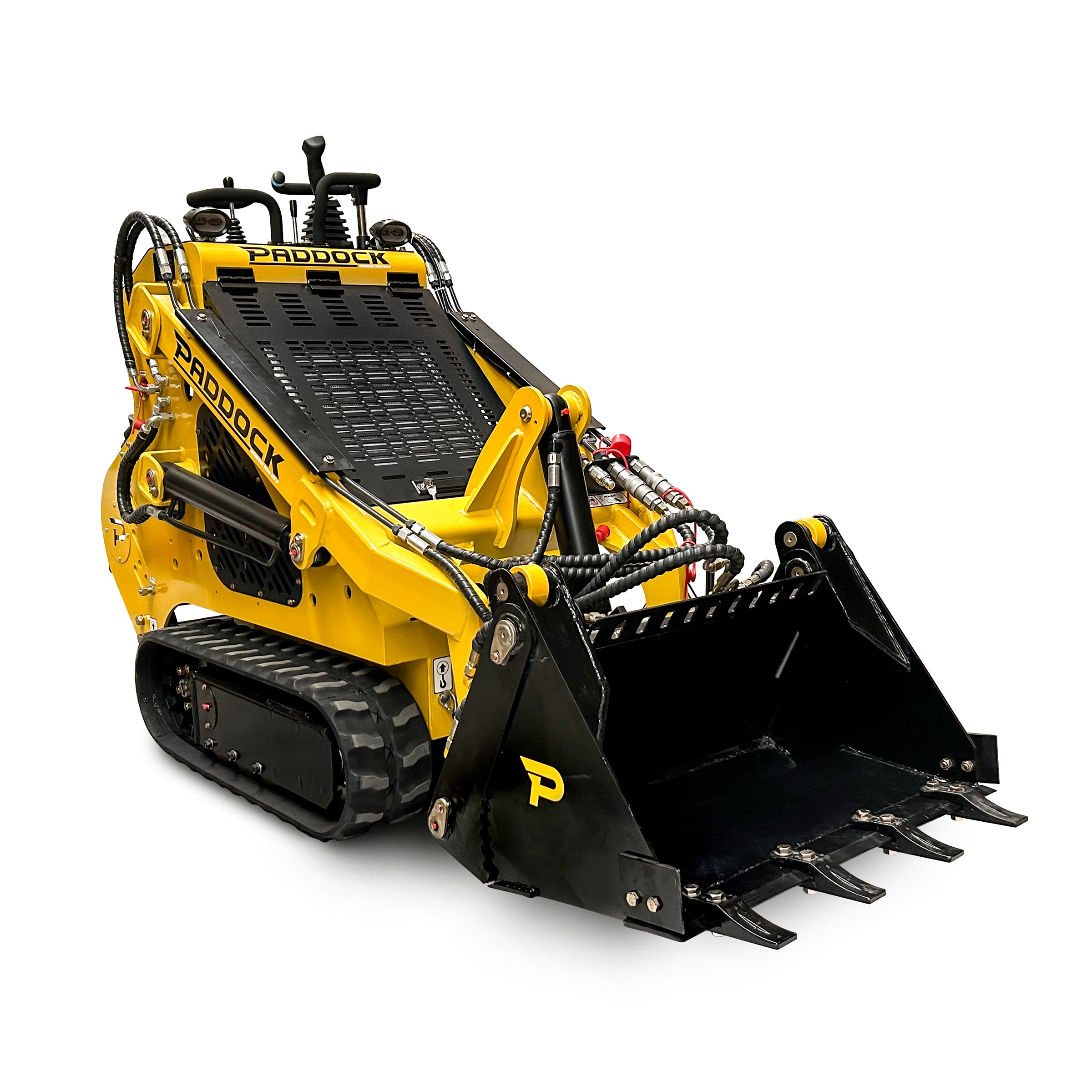

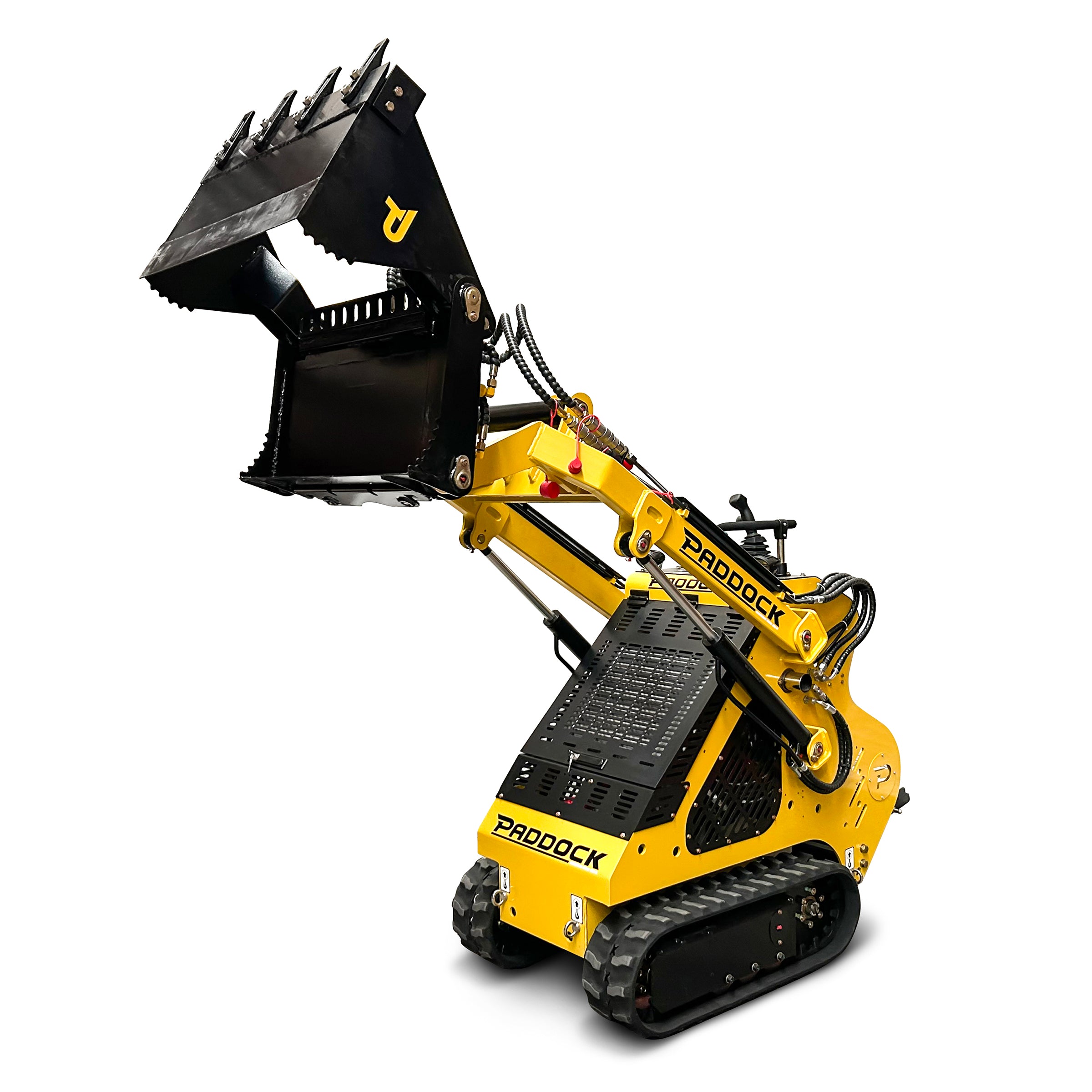

Paddock Machinery's mini loader is one of the most versatile machines on the market and is the envy of all competitors. This new model is packed with features providing it with endless uses and applications. Extremely high quality construction coupled with high end componentry make this machine ideally suited to trade and commercial applications as well as the home handy person.
Paddock Machinery is extremely high quality designed for the commercial and trade user. Paddock only use quality components sourced from all over the world to deliver exceptional performance and reliability for all their machines. Scintex is proud to offer the Paddock brand to Australian customers offering local support and parts for the life of the machine.
The Paddock mini digger is so versatile with literally 1000's of uses. If you're only going to own one machine this should be it. So simple to use and small enough to navigate through side gates around houses, this machine brings massive amounts of hydraulic power direct to your fingertips. The Paddock machine is larger with increased capacities when compared to other popular machines in the market giving it greater capabilities whilst retaining a small footprint.
This mini digger is great for landscapers, tradesmen and the home handyman alike. The 4-in-1 bucket allows dirt, rocks, sand, bark, logs plus so much to be easily scooped, grabbed or dug. Load the bucket with fertiliser or grab bails of hay. With a maximum reach of 1.6m you can easily load utes and trailers. These machines are ideal for excavating under houses, boring post holes, add the trencher attachment and lay cables and piping with ease. With the right attachments users can rip or rotary tiller paddocks, pick up large rocks, even grind stumps. Paddock mini diggers can help mix concrete, slash paddocks or simply tow caravans and boats around yards.
The engine drives a hydraulic pump which is the heart of the machine. Hydraulics drive the wheels and also allow the use of a range of hydraulic implements. Paddock loaders feature USA Permco high pressure hydraulic pumps which create up to 21 MPa of pressure and flow 60L/min, more than enough to run the most demanding attachments and implements.

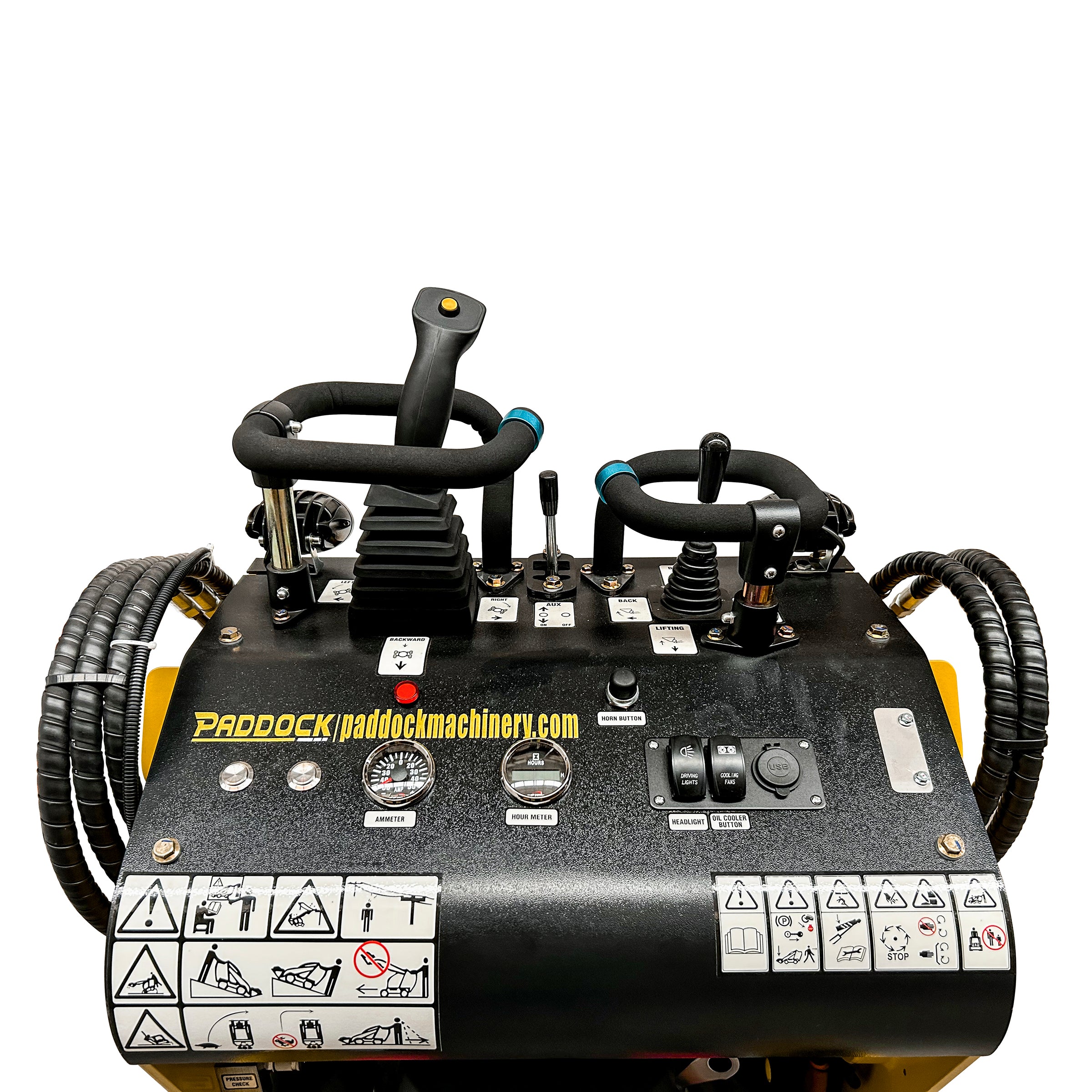

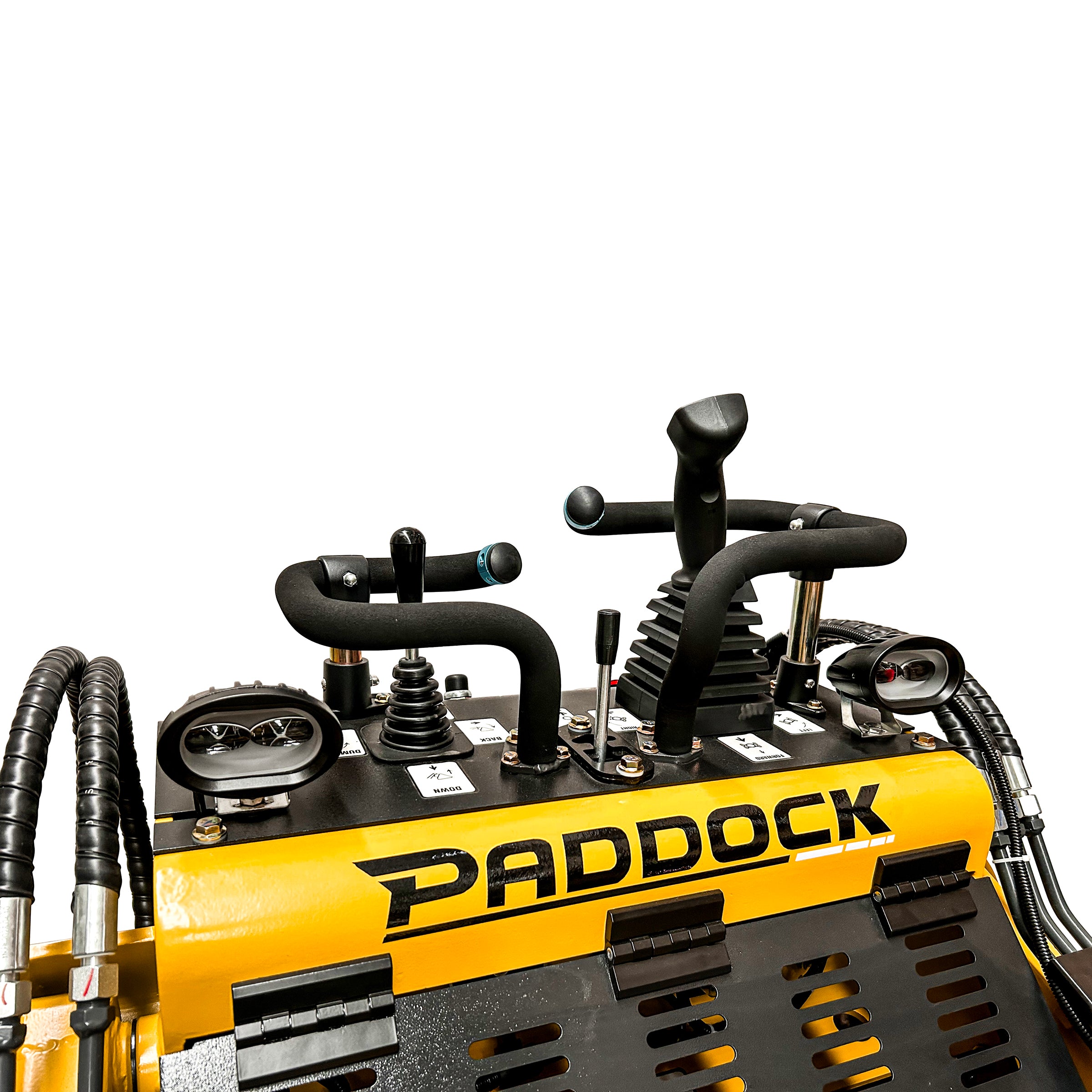

Simple lever control allows even the most novice user to quickly master operation. Packed with features such as key start, emergency shutoff, LED night lights, horn, heavy duty tie down points to name a few, this machine will not disappoint.
The Paddock loader runs a 23hp Briggs and Stratton Vanguard engine imported from the USA. These are a commercial engine and have to be seen to be believed. The are a V-twin engine over-head valve which results in superior balance, low vibration, lower emissions, improved valve life, better fuel economy and higher HP/Weight. The Vanguard air-cooled engine feature a three-year commercial global warranty meaning you can get the support at your local Briggs and Stratton dealer or through Scintex, which ever is closer and easier for you!
The real power of these machines is in the accessories and available attachments. Paddock machines feature an industry standard hitch plate meaning you can buy or rent attachments commonly available on the market and integrate with your Paddock machine.
The 4 in 1 bucket is one of the most useful tools you will ever own. Suited for grading, scraping, grappling, dozing dirt or material spreading, and most construction work. Two hose hydraulic connection makes attachment quick and simple.
When working with machinery, equipment quality should not be compromised, cheap copy machines breakdown costing you money. Paddock only use the highest quality materials making them a machine for life. Ensure you're getting genuine branded equipment, not some Chinese copy.
|Machine Load Capacity||400 Kg|
|Engine||Imported American Briggs and Stratton 23hp Vanguard V-twin Engine|
|Fuel Tank Volume||23L|
|Battery||12v 45Ah Maintenance Free|
|Hydraulic Valve||Italian HC Control Valve|
|Hydraulic Pump||USA PERMCO HP Pump, 60L/min, 21 MPa @ 3000rpm|
|Hydraulic Oil Tank||30 L|
|Hydraulic Oil Cooler||Standard|
|Hydraulic Connections||Italian DNP Flat Faced G1/2, G3/8 Quick Connects|
|Bearings||Japanese NSK throughout|
|Tyres||US Galaxy 4 Ply, tubeless, construction tyres|
|Machine Weight||~850 kg|
|Machine Dimensions||1740 mm (L) x 1150mm (W) x 1370 mm (H)|
24 Months Parts Supply Warranty
36 month Global Briggs and Stratton Engine Warranty
The Paddock Mini Loader offered by Scintex is designed to have trouble free and easy maintenance. Like any small engine the oil will require changing at predetermined intervals. The hydraulic system will require monitoring and periodic top up. The machine with 4 in 1 bucket features 23 easy to access grease nipples. Very limited mechanical knowledge is required to maintain these machines. A maintenance program is supplied with each Paddock Mini Loader.
Note: The engines are often stored and transported with only enough oil to keep the unit lubricated and additional oil may need to be added before started.
This item can be shipped Australia wide and is also available for pick up from our Brisbane warehouse. This item has a shipping weight of ~1,000kg. We advise contacting us for a freight quote to your location. A fork lift will be required at the receiver's location for unloading otherwise we'll need to quote on a tail lift truck for delivery.
