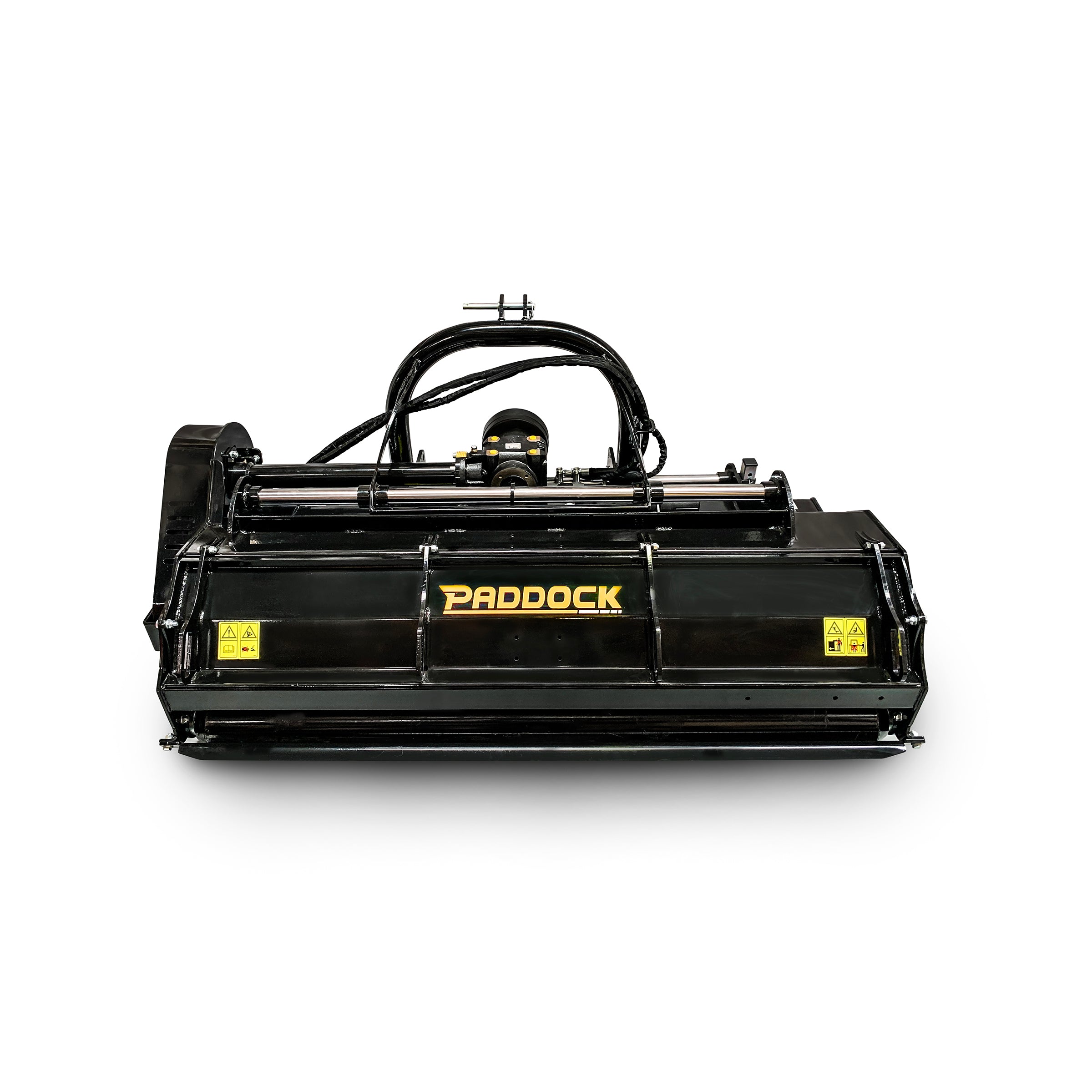

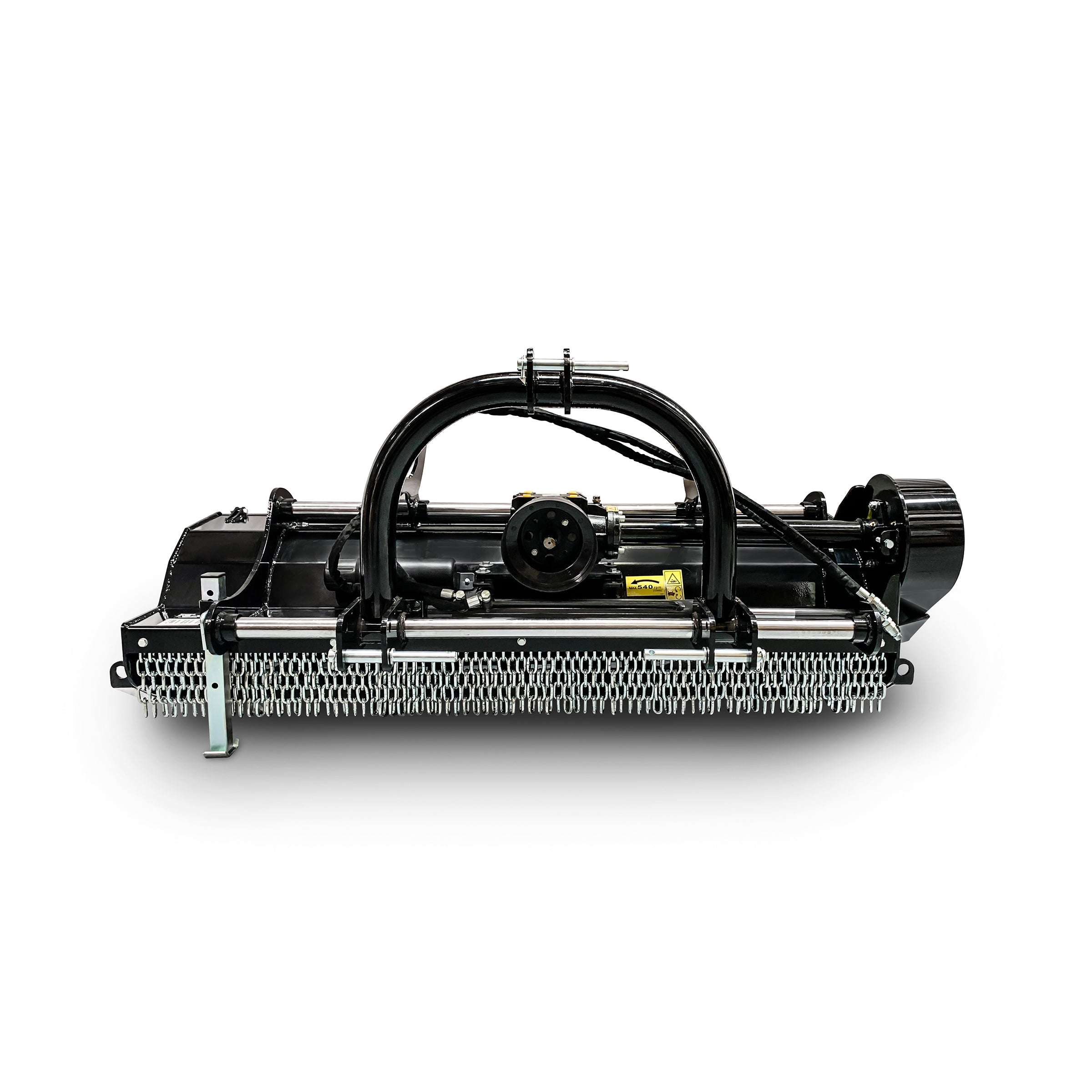

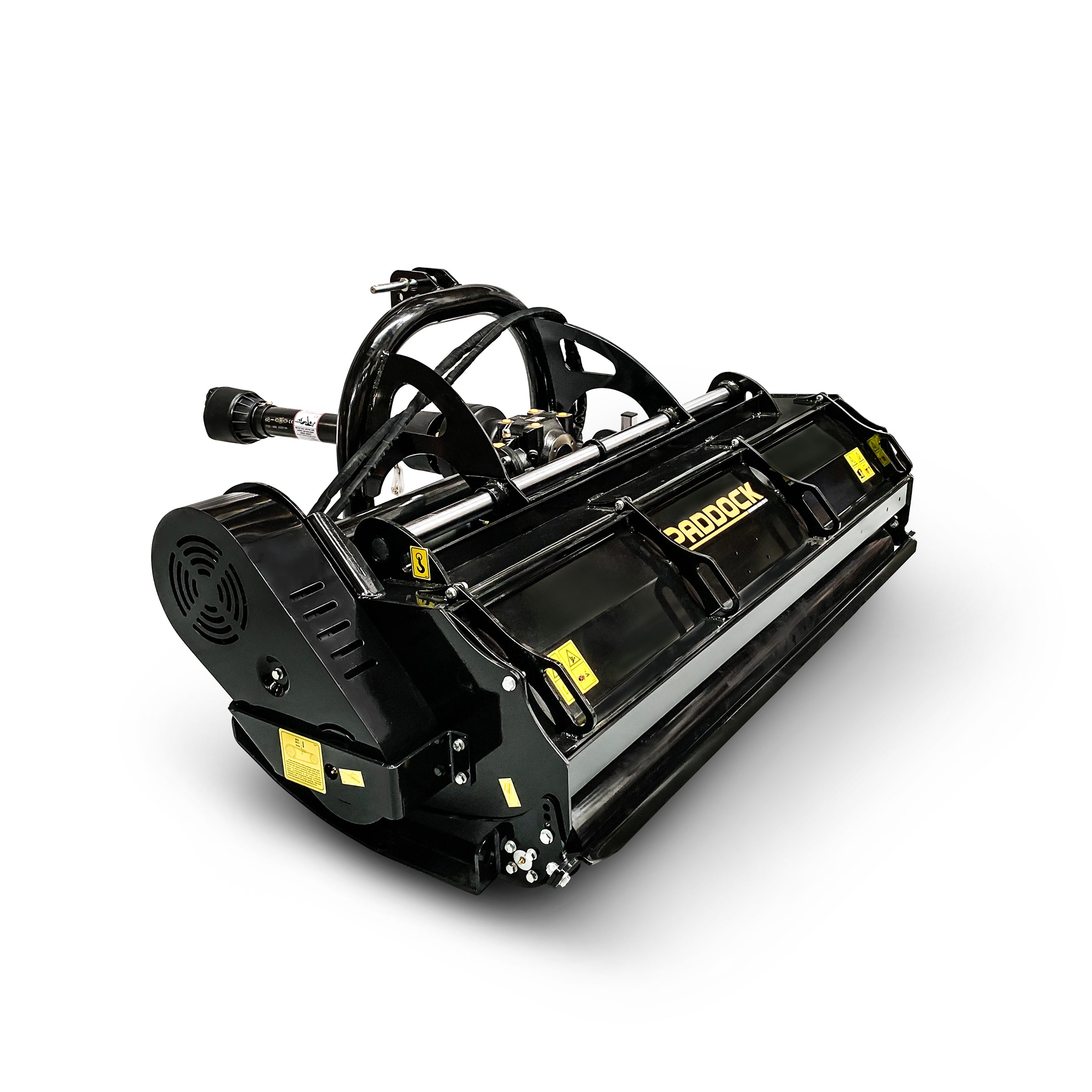

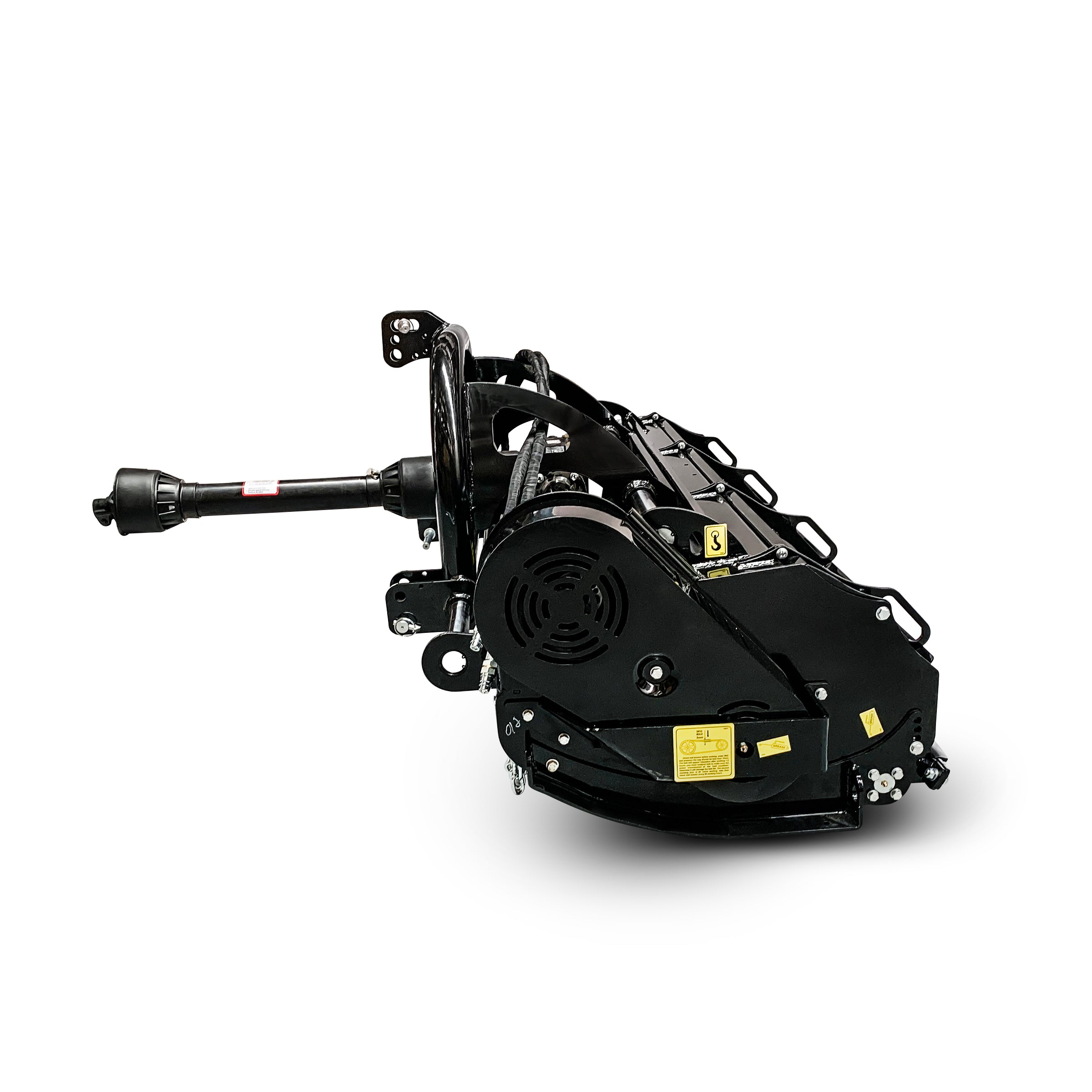

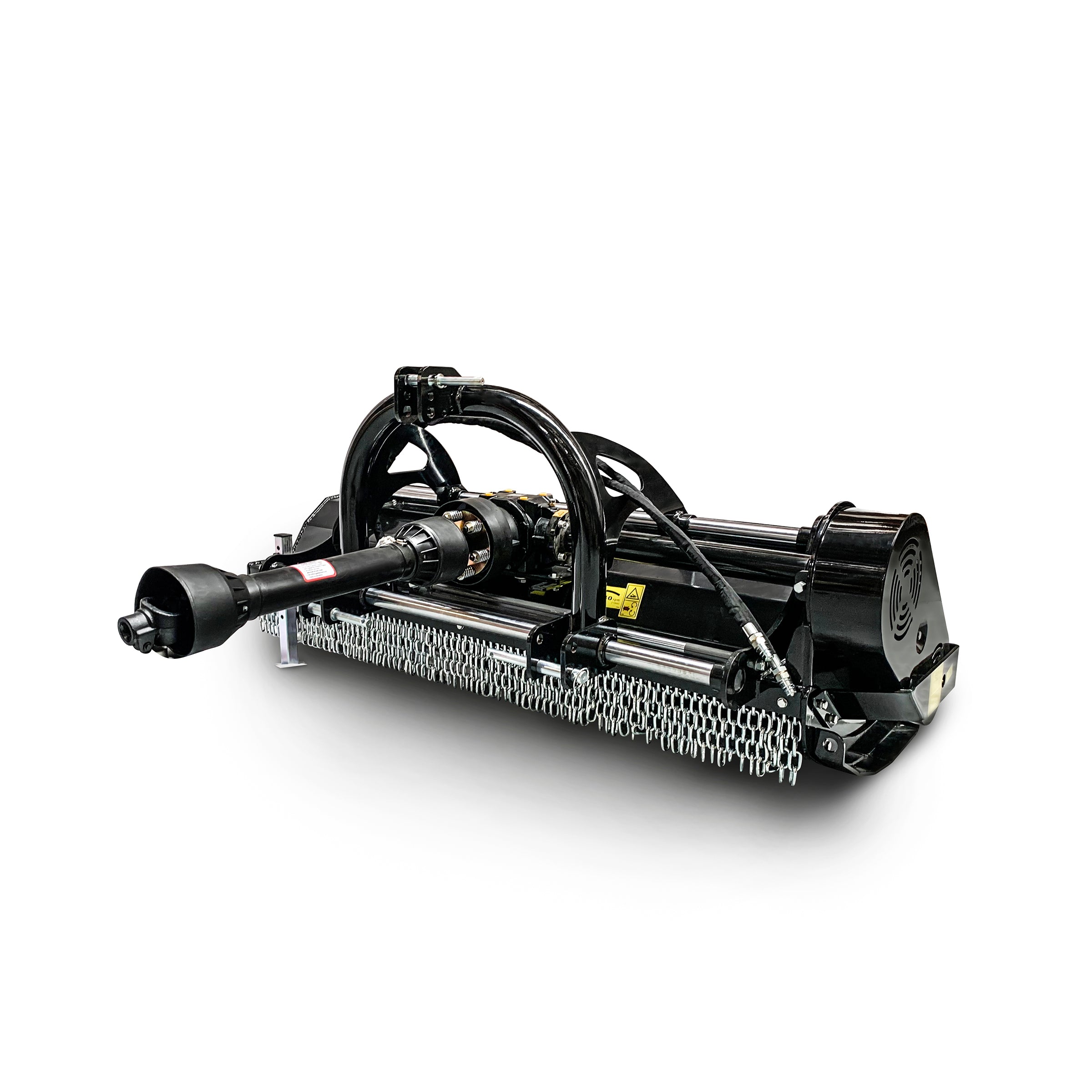

Tractor Flail Mower with Side Shift

SKU: SPTOFL180H

PRICE: $3,999.00 (inc GST)

A powerful, tractor PTO driven flail mower that is ideally suited to the tough Australian conditions. Perfect for paddocks, acreages, lawns and rough terrain with shrubs and brush that needs clearing. Designed and manufactured by Paddock Machinery to the highest quality standards. The large cutting width and hydraulic side shift makes this a popular choice for farmers and acreage owners.

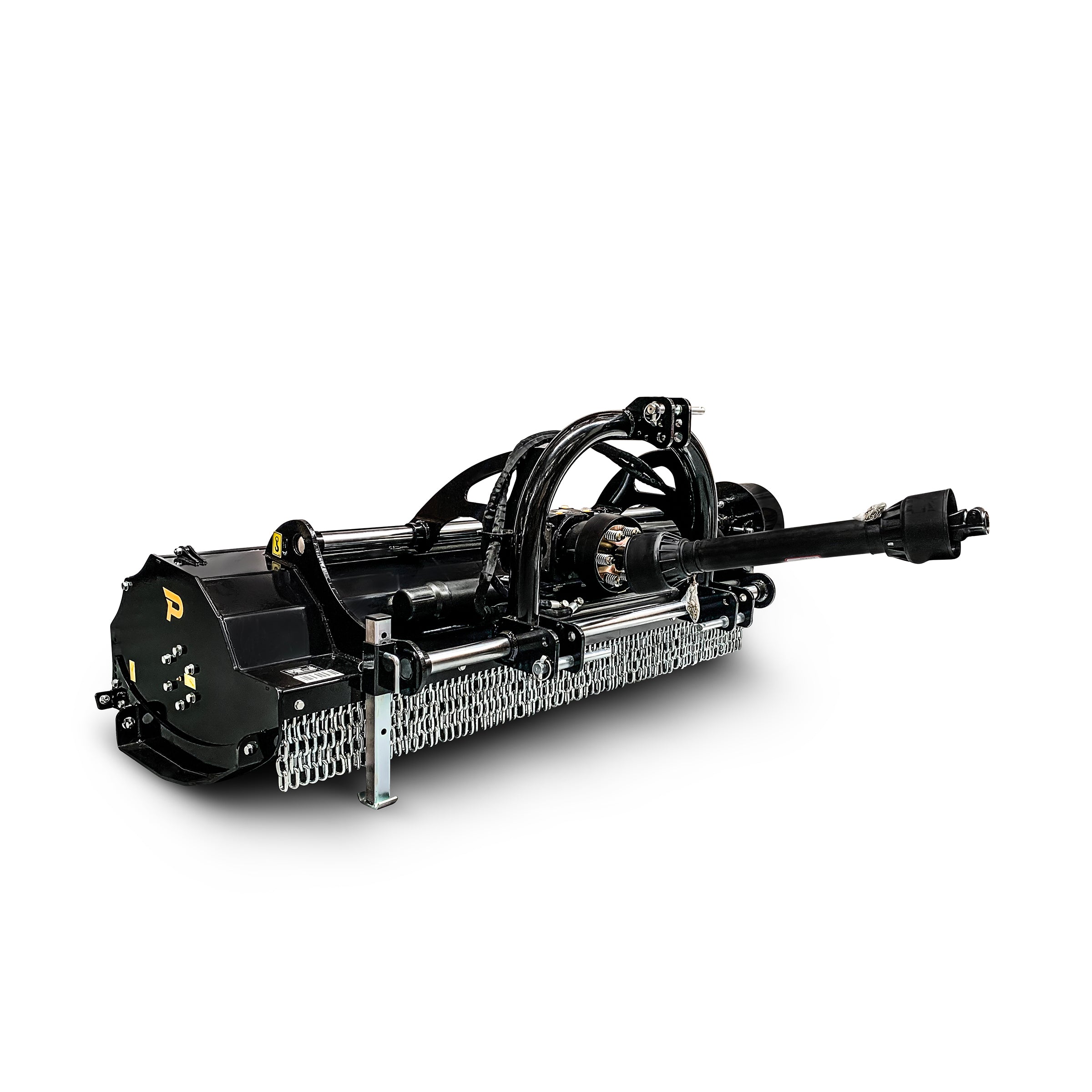

Tractor Flail Mower with Hydraulic Side Shift
  • Best suited to tractors 35-85 HP
  • Massive 1,750mm cutting width
  • Fitted with hydraulic side shift option as standard
  • Includes PTO safety clutch as standard
  • Heavy duty construction with quality fixtures
  • PADDOCK Australian warranty



The most popular model tractor flail mower. It's simple design makes it incredibly robust, suitable for a wide range of tractors with 3 point linkage in either Category I or II. Due to the popularity, these units are available in one configuration only with the hydraulic side shift fitted as standard, offering incredible value for money. If your tractor is not fitted with rear hydraulic capability, the unit can still be used with the hoses disconnected minus the side shift functionality.

This flail mower is fantastic for shredding long grass but can also work well for bush and shrubs up to 50mm in diameter. The rolling blade design of the flail mower differs from a horizontal swing blade slasher and means if a rock or log is impacted, the individual blade can swing back rather then stopping the entire cutting mechanism. The flail design outperforms other cutting designs in longer grasses where mulching and faster decomposition of the cut grass is desired.

These flail mowers will also deliver a clean and well finished cut to your lawns. The cut height can be adjusted between 20mm / 40mm / 60mm, in addition to the 3-point linkage height adjustment options. The unit is fitted with a self leveling roller and rear scraper. Supplied standard are high quality forged and hardened hammer blades which have been chosen for their performance in the rugged Australian conditions.

The construction of the Paddock™ fail mower is exceptional and extremely heavy duty. The design is well proven and over engineered to last. Paddock™ equipment is designed for the Australian conditions. The gearbox fitted to this unit is strong and from one of the largest gearbox manufactures in the world ensuring long lasting performance. PADDOCK offer a 2 Yr warranty on these flail mowers giving users confidence they are buying a quality built product. All parts to service and maintain your flail mower are available locally making it the perfect choice.

Tractor Implement Model SPTOFL180H
Brand Paddock Machinery
Cutting Width 1,750mm
Overall Width 2,000mm
Cutting Height Adjustable skids (~20/40/60mm)
Hydraulic side shift

Standard including hoses and quick connection couplings

Side shift (from central);

Left - 160mm

Right - 120mm

Recommended Tractor Power

35-85 HP

Note, due to the fitment of the PTO safety clutch higher hp tractors may be used. The unit is suited to Cat I&II tractors.

PTO Speed 540 RPM
Flai Drum Speed
2125 rpm
Cutting Tip Speed 45.5 m/s
Construction Heavy duty powder coated steel
Linkage 3 Point Linkage - Cat I or II (pins supplied)
Weight 523 kg
Dimensions 2,000mm x 1020mm x 890mm (H)
Blades 24 x Forged and Hardened Hammer Blades
PTO Shaft Included 1-3/8" 6 Spline
PTO Safety Clutch Fitted as standard
Warranty 2 Year Warranty

The gearbox will require oil to be added prior to use, SAE EP 90W should be added. The unit is clearly labelled to remind users of lubrication requirements. Whilst initial factory greasing is performed, we recommend new owners perform their own greasing prior to use to learn their machine and maintain it. The supplied user manual includes instructions on recommended maintenance and lubrication for the machine.
