Tractor PTO Generator

SKU: SPTOG15KW

PRICE: $3,849.00 (inc GST)

These heavy duty PTO driven generators are ideal for the farmer wanting to operate power tools, welders and electric pumps in remote paddocks. They're fully featured with both single and 3-phase output options making them extremely versatile. Mounted on a heavy steel frame and coupled to a robust speed multiplier gearbox these units offer extremely good value for money without sacrificing quality.

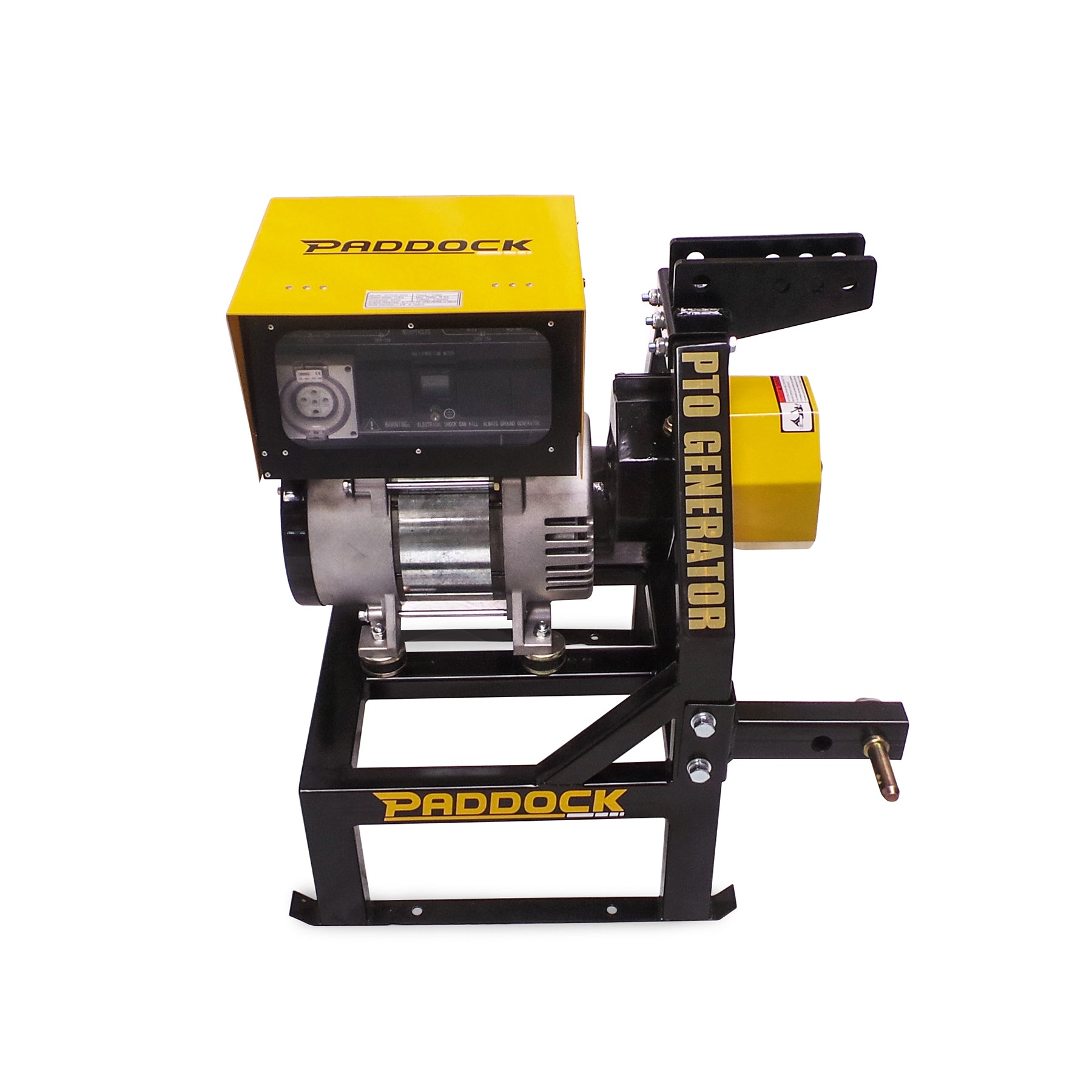

Paddock PTO Tractor Generator

  • Attaches to 3 point linkage setup
  • Includes PTO shaft and pins
  • Heavy duty speed multiplier gearboxes
  • Automatic Voltage Regulator (AVR) integrated
  • Fast to relocate to where you need it
  • Utilise the reliability of your existing tractors diesel engine
  • Ideal as an emergency backup generator as there's no associated diesel engine to maintain when not in use
PTO Generator Applications

These generators are perfect for small or large farms and quickly and easily attaches to your tractor making transport a breeze. The heavy duty frame allows for fast trouble free deployment. The perfect addition to anyone needing to weld or drill fences down the back paddock. Utilise the power of your tractors PTO and generate clean power from your diesel engine. Save on petrol generator costs by letting your reliable diesel tractor make the power. Great for remote lighting setups or running temporary pumping operations. Even a backup generator for the farm house. The larger models can be used to power commercial business applications during power outages and emergency situations.



Generator Features

These generators are packed with usable and practical features making them simple, modern and reliable. The generators come with both singe phase and 3-phase power outlets making them very accommodating to a range of applications.  Included is a digital voltage and frequency meter so you can monitor the units performance. They also include re-settable circuit breakers in case you do overload an outlet. Each generator is supplied with the PTO input shaft so no need to buy extra components.

Generator Construction

These are heavy duty generators designed for Australian conditions. Weighing in at over 150kg, these generators are over-designed and heavy duty. The units include a cast steel cased gearboxes with straight cut gears designed to take the high horsepower inputs of modern tractors. Machined hardened steel shafts and quality bearings ensure a long, low maintenance operating life.

The generator itself incorporates high grade copper windings and fully enclosed electrics ensuring safe, trouble free operation. The brush-less generator design (30 kW+ models) means fewer parts to ever need replacing.

Generator Linkage and Compatibility

Check table below. Standard three point linkage (3PL) for Category 1 (Cat I) tractors with a PTO speed of 540 RPM. Larger models require 1000 RPM input speeds and with with Cat 2/3 tractors.

PTO Generator Specifications
Generator Model SPTOG15KW SPTOG30KW SPTOG50KW SPTOG75KW

Rated Power

(Continuous)

15 kW 30 kW 50 kW 75 kW
Tractor Power Range 15 hp+ 25 hp+ 100 hp+ 150 hp+
Power Output

AC Sine Wave

3 x Single Phase (16amp breakers)

1 x 5 pin 3-phase outlet (25 amp breaker)

1 x 12V DC outlet (7amp breaker)

AC Sine Wave

2 x 415V (25amp breakers)

3 x Single Phase (16amp breakers)

AC Sine Wave

3 x Single Phase (16amp breakers)

1 x 415V, 50A

1 x 415V, 40A

AC Sine Wave

3 x Single Phase (16amp breakers)

2 x 415V, 50A

1 x 415V, 32A

Power Factor (Cos Q) 1.0/0.8 1.0/0.8 1.0/0.8 1.0/0.8
PTO Speed 540 RPM 540 RPM 1000 RPM 1000 RPM
Generator Speed 3000 RPM 1500 RPM 1500 RPM 1500 RPM
Generator Type Brushed Brushless Brushless Brushless
Linkage Cat I - Three Point Tractor Linkage Cat I - Three Point Tractor Linkage Cat 2/3 - Three Point Tractor Linkage Cat 2/3 - Three Point Tractor Linkage
Features

Digital Voltage and Frequency meter

AVR included

Digital Voltage and Frequency meter

AVR included

Digital Voltage and Frequency meter

AVR included

Digital Voltage and Frequency meter

AVR included

Construction Heavy duty, painted steel Heavy duty, painted steel Heavy duty, painted steel Heavy duty, painted steel
Gear Box Oil SAE90 SAE90 SAE90 SAE90
PTO Input Shaft Included 1-3/8" 6 Spline Included 1-3/8" 6 Spline Included 1-3/8" 6 Spline Included 1-3/8" 6 Spline
Weight ~155 kg ~220 kg ~230 kg ~280 kg
Dimensions 660 (w) x 660 (l) x 880 (h) mm 1030 (w) x 720 (l) x 1100 mm (h) 1100 (w) x 720 (l) x 1100 mm (h) 1150 (w) x 770 (l) x 1150 mm (h)
Warranty 12 Months 12 Months 12 Months 12 Months
