Mini Loader Equipment Trailer

SKU: STML1500

Paddock Machinery offers extremely high quality equipment at affordable prices. Ideal for professional and trade applications, when buying Paddock brand you can rest assured you're getting a heavy duty proven design that won't let you down.

Made in Australia!

Customise the trailers to suit the attachments ordered!

Available in:

- 1500kg Single Axle

- 2000kg Tandem Axle

- 2500kg Tandem Axle

Plant and Equipment Trailer

A custom made trailer ideally suited to the Paddock mini loader and it's range of accessories. These trailers are locally built and can have a certain level of customisation depending on user requirements. They are heavy duty and extremely well built just like the Paddock range of equipment.

Dual axles with dual axle electric brakes ensures this trailer is safe to tow and reliable with a full load of machinery and accessories. Rated to 2.4T this trailer has everything you need to quickly and efficiently load and unload making it the perfect accessory to put your loader to work.

The trailer comes fitted with 5 new 14" light truck tyres. Included is a heavy duty swing up jockey wheel and hand brake. Thick checker plate floor, heavy duty tie down points, rear stabiliser legs with adjustable drop down ramps. 4 coats of enamel paint provides a hard wearing finish. These trailers are extremely well built, meet all Australian design standards and will not disappoint.

Standard accessory brackets include room for trencher, post hole auger drive and three augers, 4 in 1 bucket and forks. Additional or alternative accessories can be designed to fit the trailer on request.

Trailer Registration:

Optional 12 months registration (additional $265 for QLD, other states please inquire). We can do this for any state in Australia. Customer to provide details at ordering and we will organise for the trailer to be registered directly into your name or business name so there is no need to perform additional road worthy reports on delivery.



Trailer STML1500 STML2000 STML2500
ATM 1500 kg 2000 kg 2500 kg
GTM 1350 kg 1800 kg 2250 kg
Trailer Weight ~300kg ~570kg ~600kg
Axles Single, 45 Rnd Slimline Tandem, 45 Rnd Slimline Tandem, 45 Rnd Slimline
Dimensions 2000 x 1500mm 2700 x 1500mm 2700 x 1500mm
Coupling 50mm Tow Ball 50mm Tow Ball 50mm Tow Ball
Wheels 3x 14" Ford White c/w 185R14 LT 5x 14" Ford White c/w 185R14 LT 5x 14" Ford White c/w 185R14 LT
Spare Wheel Vertical mount on draw bar Vertical mount on draw bar Vertical mount on draw bar
Brakes 10" Mechanical Overide Disc, Park Brake Two Wheel 10" Electric (in cab), Park Brake Two Wheel 10" Electric (in cab), Park Brake, Brake breakaway
Suspension 45 x 8, 6 Leaf Shackle 60mm Rocker Roller (Alko) 60mm Rocker Roller (Alko)
Stabiliser Legs Rear SHS - SHS Rear SHS - SHS Rear SHS - SHS
Jockey Wheel 8" Heavy Duty Swivel 8" Heavy Duty Swivel 8" Heavy Duty Swivel
Chassis Side runner 50x50x3, Front cross runner 50x50x3, Longitude runner 50x50x3 @ 1000 centre, Noggins 50x50x3, Rear cross runner 100x50x3, Drawbar 100x50x3 Side runner 50x50x3, Front cross runner 50x50x3, Longitude runner 50x50x3 @ 1000 centre, Noggins 50x50x3, Rear cross runner 100x50x3, Drawbar 100x50x3 Side runner 50x50x3, Front cross runner 50x50x3, Longitude runner 50x50x3 @ 1000 centre, Noggins 50x50x3, Rear cross runner 100x50x3, Drawbar 100x50x3
Body Checkerplate floor, 250mm high sides and front (2.0mm flat sheet), mudguards (2.0mm flat sheet), rear light gusset, 4x U-bolt tie points Checkerplate floor, 250mm high sides and front (2.0mm flat sheet), mudguards (2.0mm flat sheet), rear light gusset, 4x U-bolt tie points Checkerplate floor, 250mm high sides and front (2.0mm flat sheet), mudguards (2.0mm flat sheet), rear light gusset, 4x U-bolt tie points
Attachment Platform n/a RHS frame, checkerplate, suits auger drive, pallet forks, trencher RHS frame, checkerplate, suits auger drive, pallet forks, trencher
Auger Mount n/a 3x augers mounted to drawbar and platform 3x augers mounted to drawbar and platform
Lighting LED type fully compliant to Australian design rules LED type fully compliant to Australian design rules LED type fully compliant to Australian design rules
Safety Chain 10mm Single Rated 10mm Single Rated 10mm Double Rated
Ramps 1800x300mm, Hinge & slide, Expand mesh 1800x300mm, Hinge & slide, Expand mesh 1800x300mm, Hinge & slide, Expand mesh
Finish Clean & Seal, Etch Prime, 2 pac Poly U400 Black Clean & Seal, Etch Prime, 2 pac Poly U400 Black Clean & Seal, Etch Prime, 2 pac Poly U400 Black
Warranty 12 months 12 months 12 months

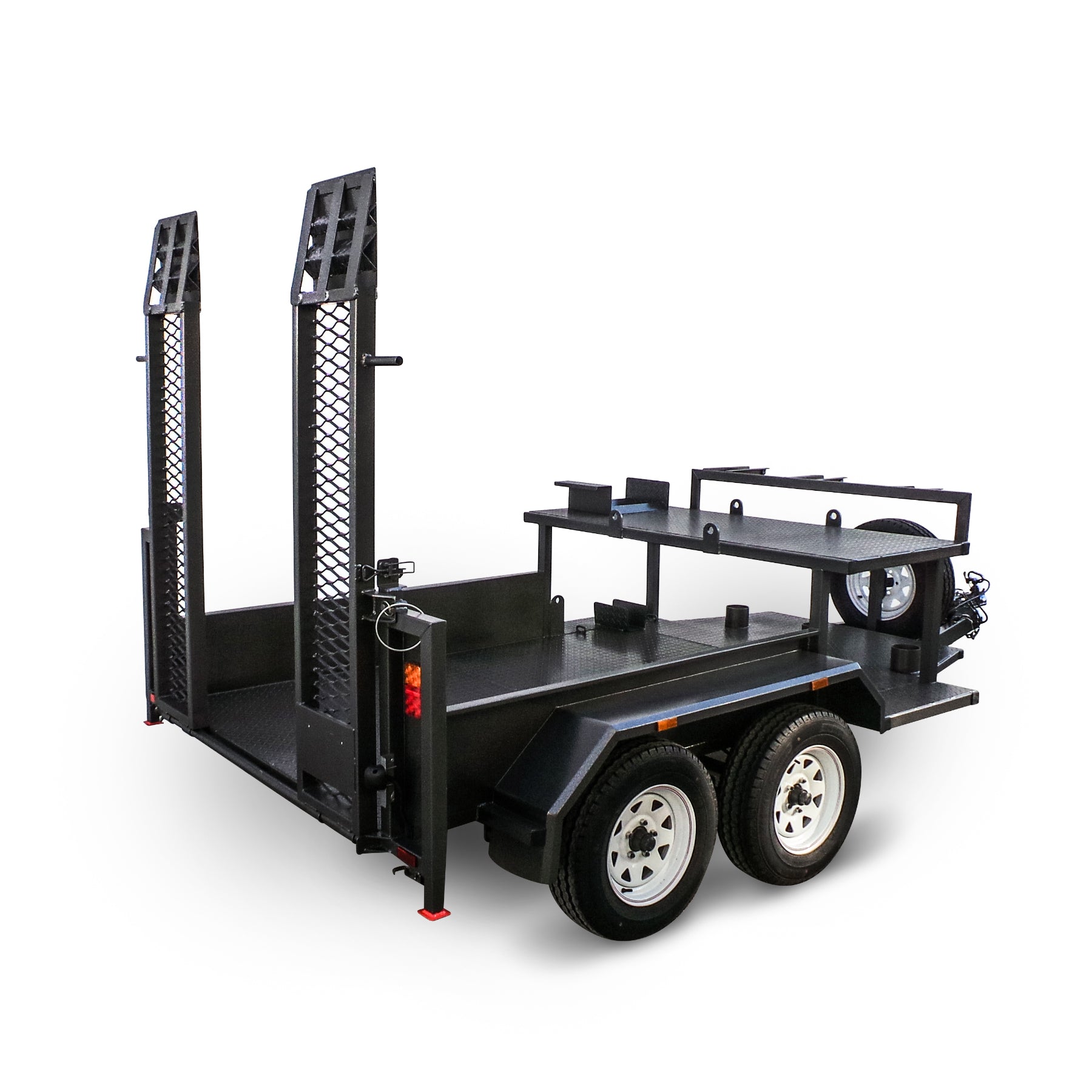

*The images are for a mini loader trailer we built for a customer. The final trailer will depend on what is ordered and attachments required.
