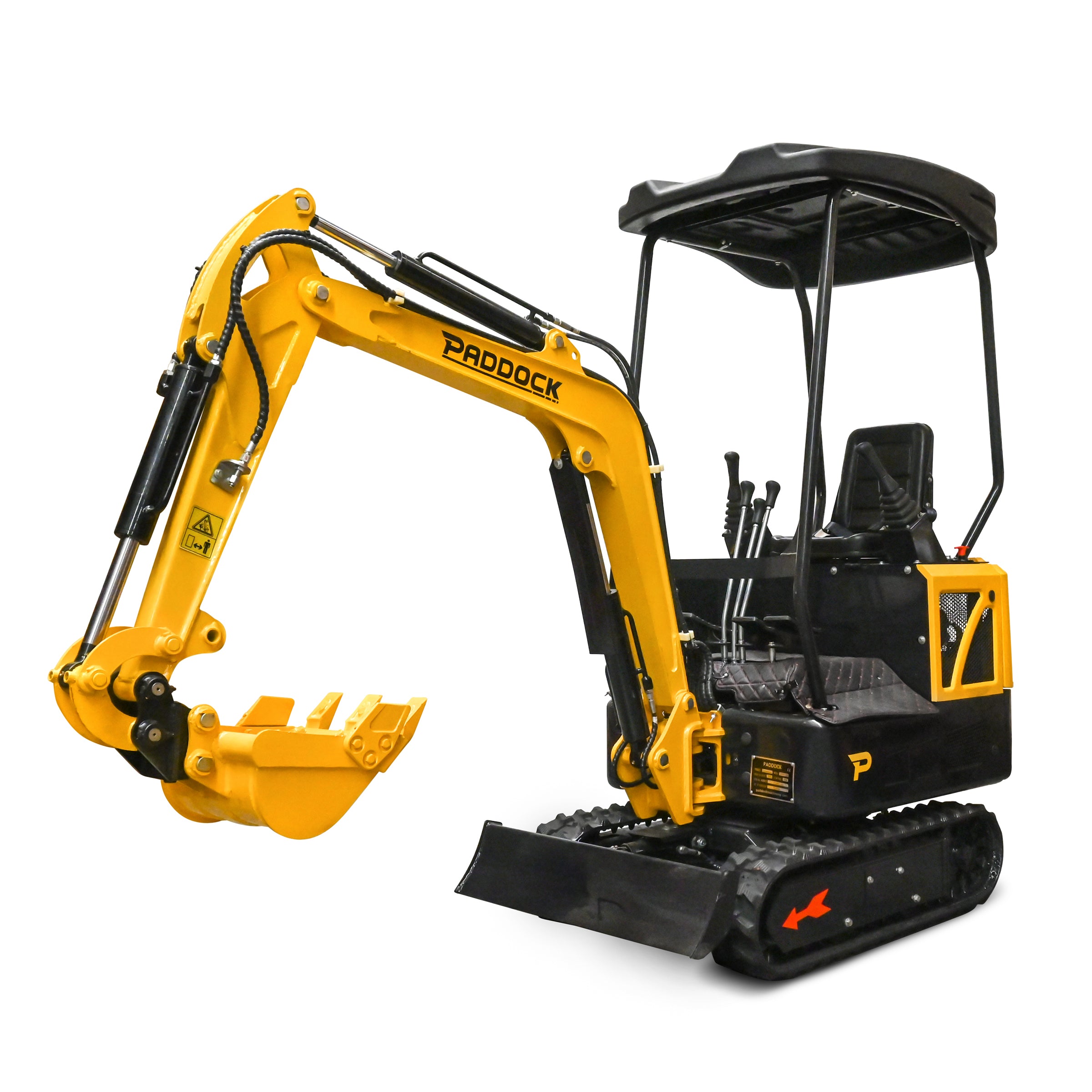

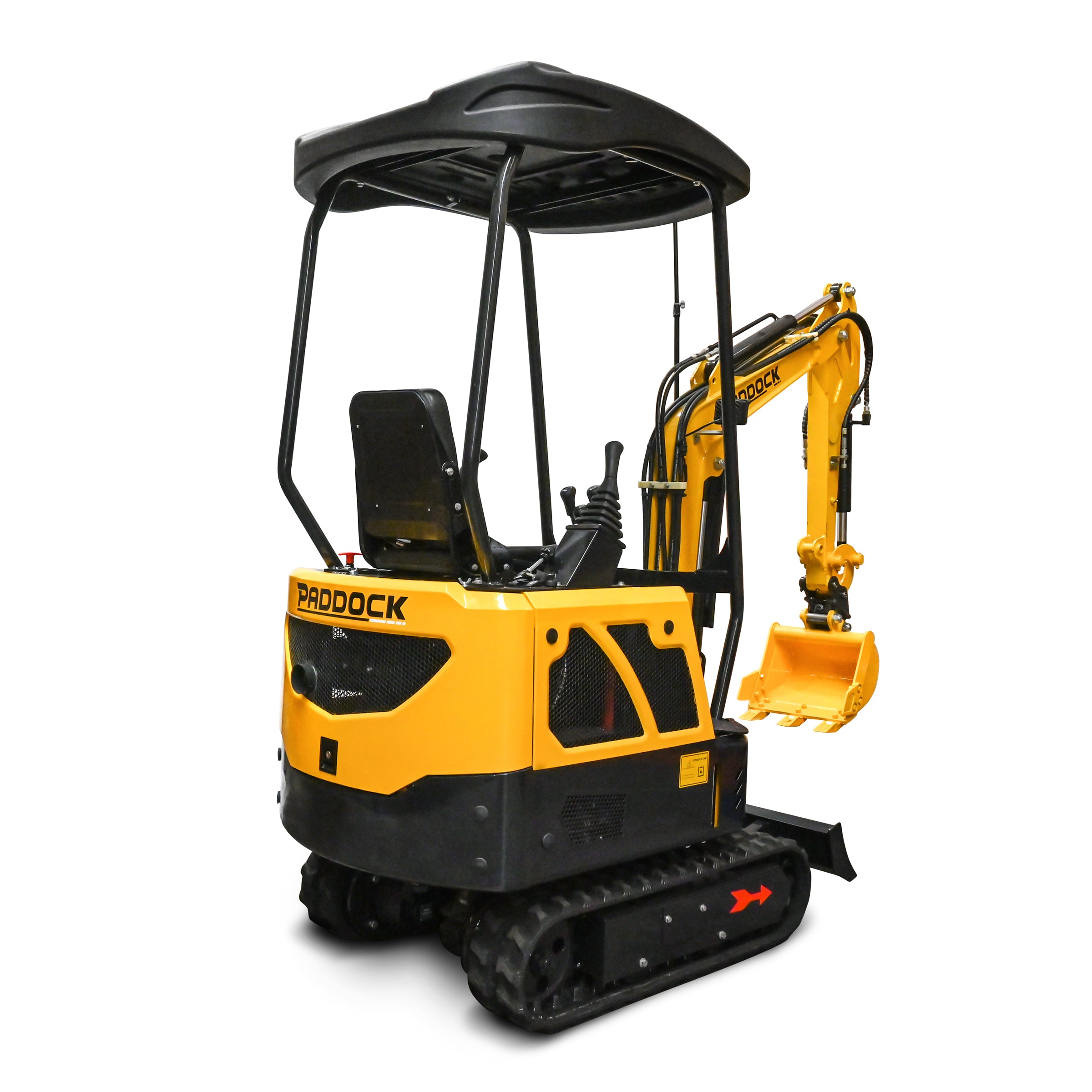

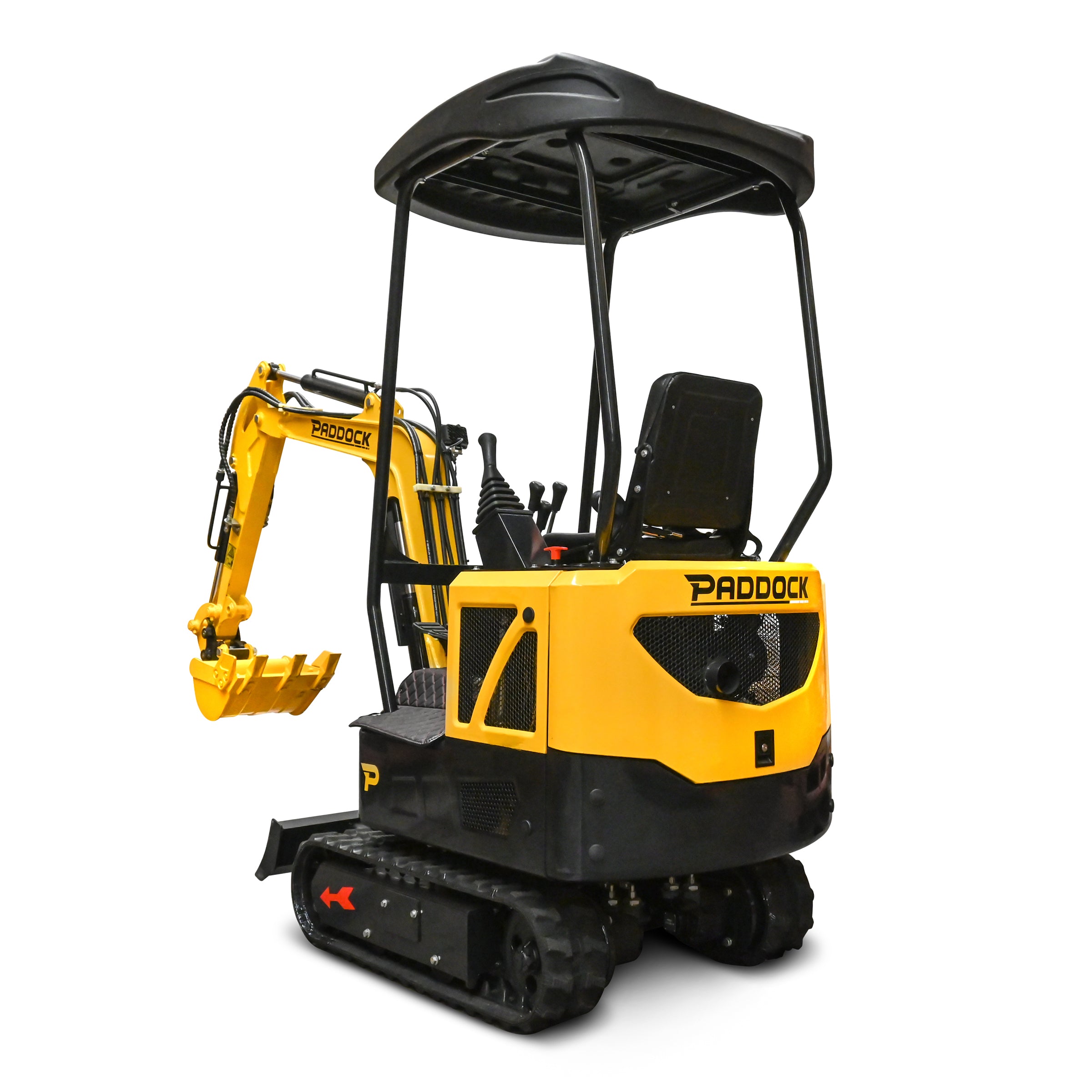

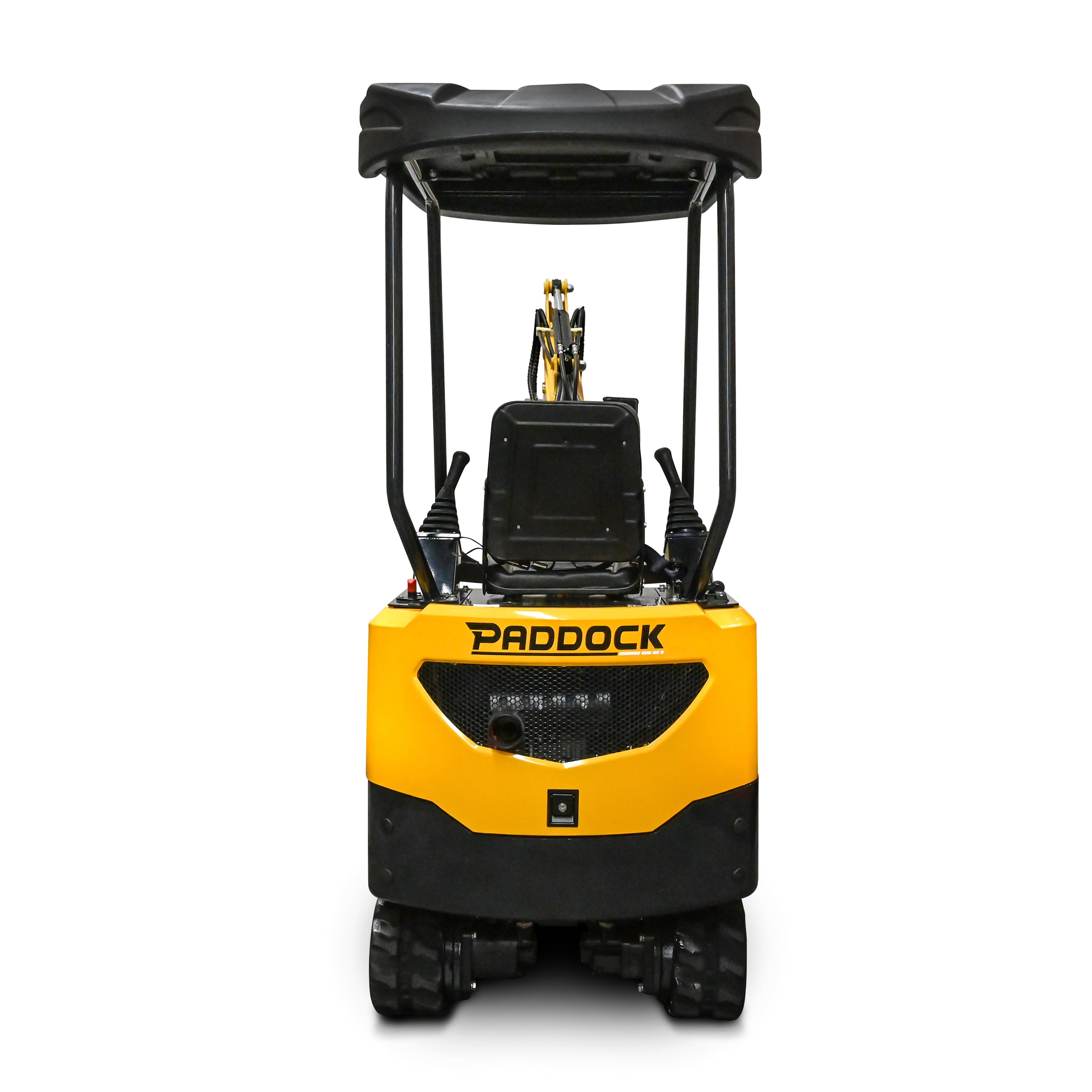

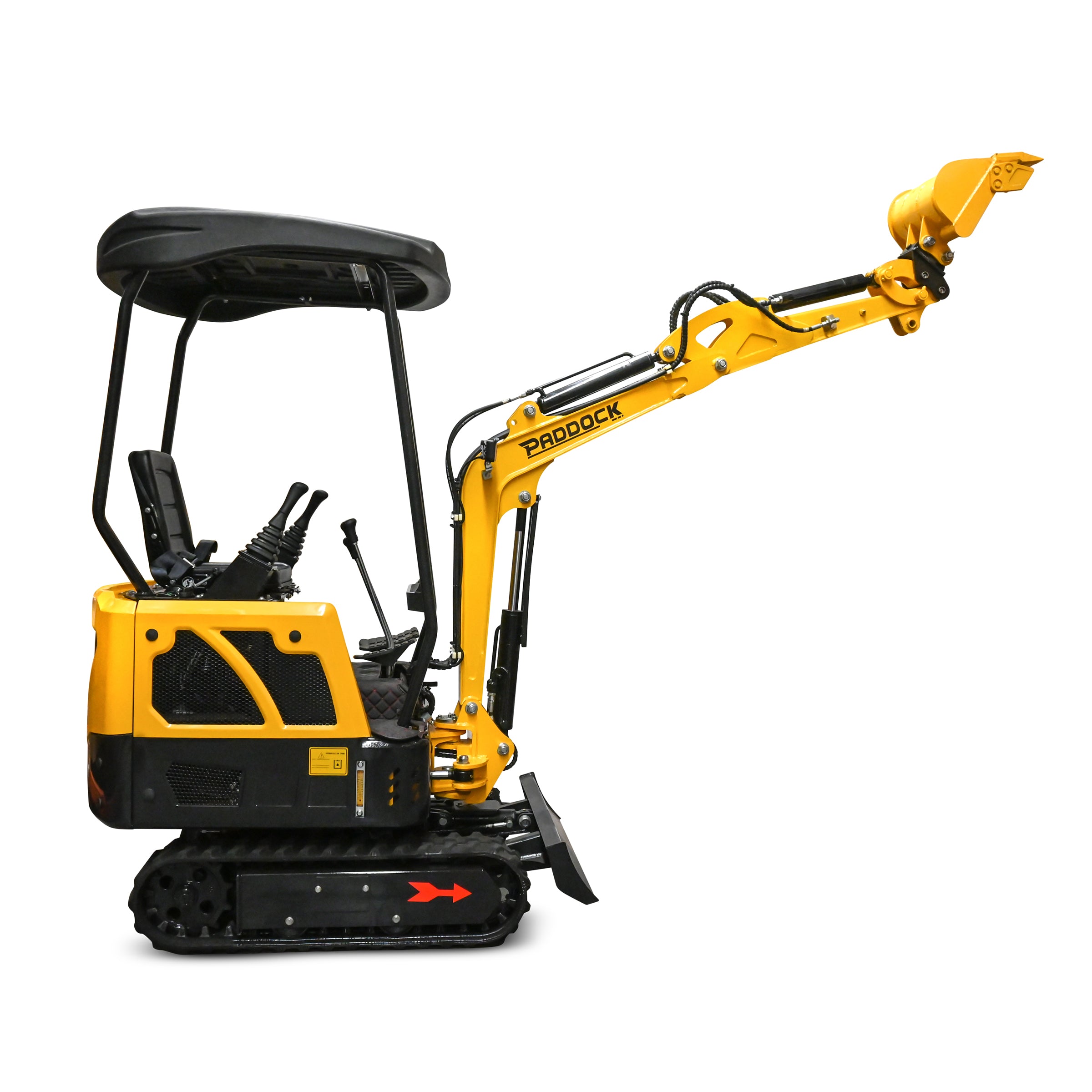

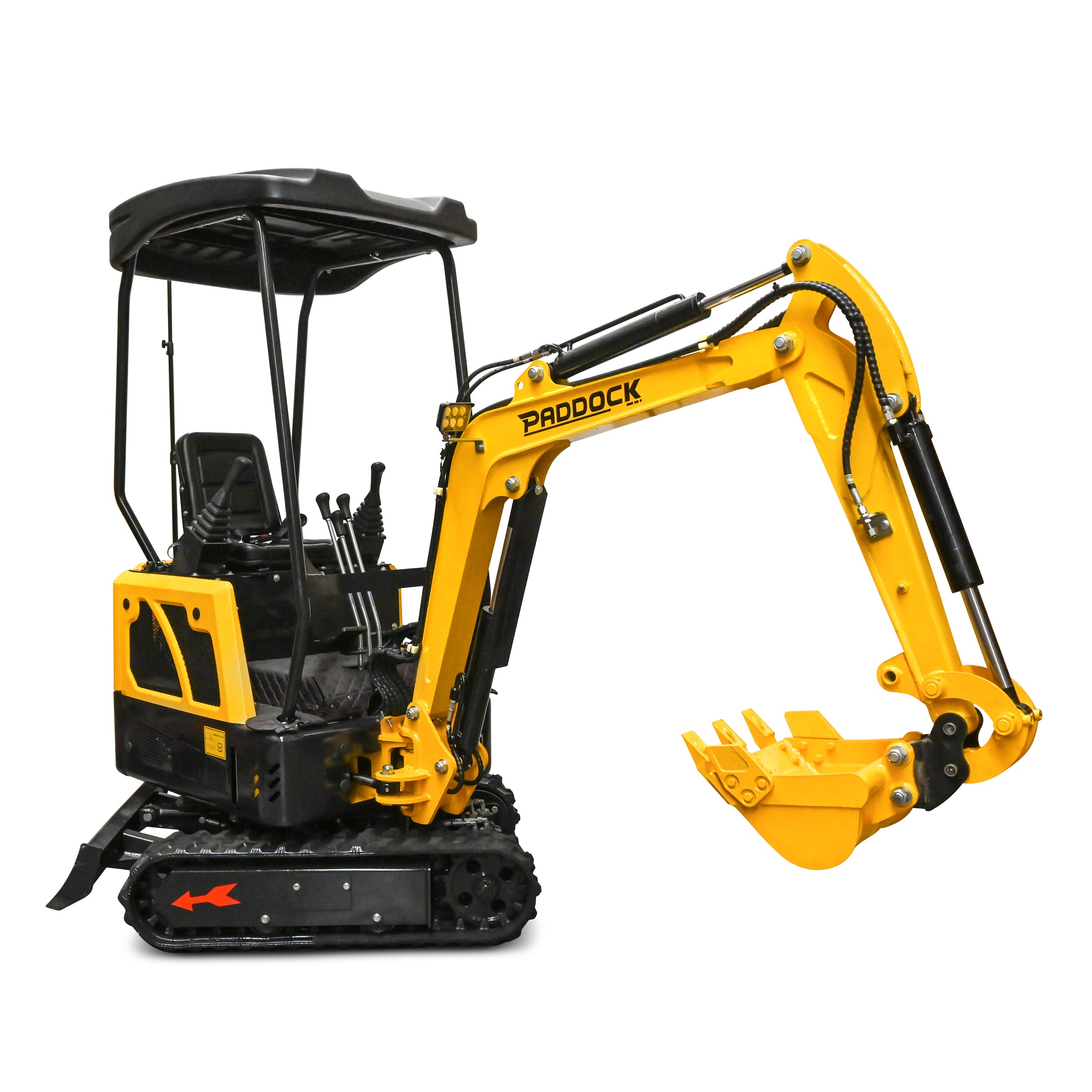

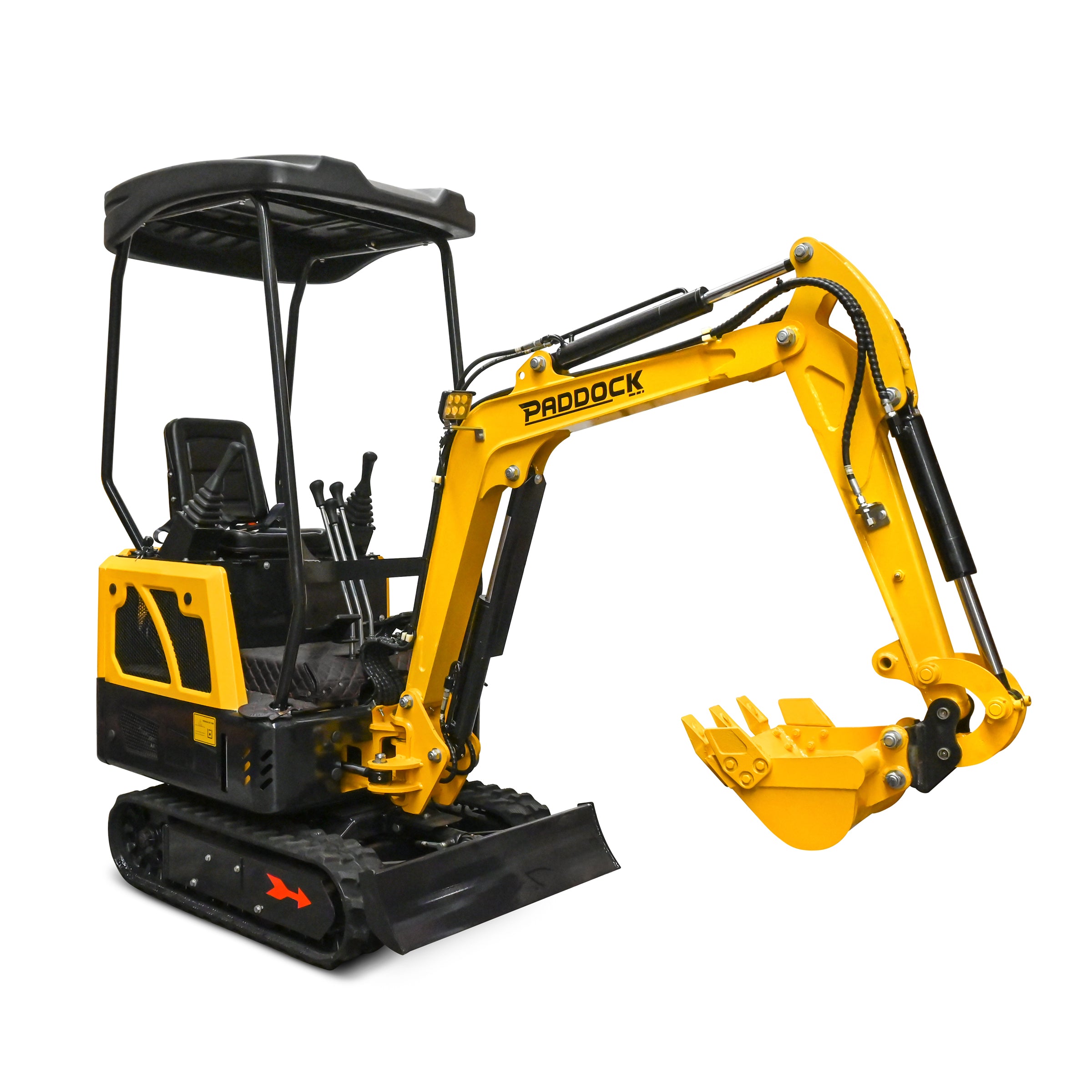

Paddock Excavator Series 10

SKU: SPEX10

Paddock™ excavators are built to make light work of the toughest jobs. Quality components and smart engineering design delivers a high performance excavator package. The excavator can be used with a full range of attachments for applications such as trenching, auguring, rock breaking and bulk materials transfer. This is the ideal machine for small business operators and acreage owners through to large construction companies needing a smaller footprint unit for tight area access.

Paddock Machinery logo

Call us today to book a demo 1300 246 406 (option 1)

Diesel Engine Tracked Excavator

The series 10 Paddock™ Excavator is the smallest in the range but still packs a punch combining the efficient diesel engine with powerful hydraulics.

The narrow width makes this machine ideal for tight access jobs of small to medium size. The unit is perfect for individual contractors as well as landowners who want the independence of working at their own pace without sacrificing capability.

  • Simple and reliable air cooled diesel engine
  • Impressive 6.5kN excavating force
  • Supplied with a 360mm bucket fitted
  • Hydraulic Joystick control
  • Heavy duty steel construction with CNC laser cut build accuracy
  • Full function with traverse, swing and dig capabilities
  • Auxiliary hydraulic connection making it compatible with a range of attachments including augers, rock breakers and grapples etc.
  • Simple key start ignition
  • Upgraded quality oil pump and travelling motors
  • 2yr warranty from an established Australian business
Paddock Machinery

Exceptional quality at a realistic price, Paddock™ excavators are ideal for the commercial trade user through to the small property owner. The Paddock difference is that quality components, sourced from all over the world, are used to deliver the perfect package. Bulk buying power savings are passed onto the consumer, to offer turn key units that compete with the bigger name players, at a realistic price. Scintex is proud to offer the Paddock™ brand to Australian customers offering local support and parts support for the life of the machine.

Diesel Engine Excavator

The Series 10 runs a KOOP, 1 cylinder, air cooled diesel engine. These engines are nothing but exceptional and are extremely well proven throughout the Paddock product range. Whilst KOOP diesel engines are manufactured in China, it's hard to fault their performance and price point. The engine design is mechanical without complicated electronics making it very reliable. Service spares are common Australia wide and Scintex also carry a full range of genuine parts and consumables. Many parts and consumables are interchangeable with the Yanmar engine equivalent which also offers assurance supply will never be an issue.

Operating this excavator is very fuel efficient and users can expect to use only a few liters of diesel per hour operating under full load. Putting this excavator to work to make a financial return is simple and can be considered by private contractors or new business starters.

High Specification Quality Components

The Paddock™ brand prides itself on offering exceptional value for money without sacrificing quality and this is achieved by upgrading key components to make the products offered 'better' than the competition. The Series 10 excavator is no exception and comes with a high quality hydraulic oil pump. The hydraulic pump is the heart of the excavator as it generates the oil pressure to run the downstream rams and motors. Running a quality hydraulic pump helps achieve the high performance this machine delivers.

The drive and swing motor on the Paddock™ Series 10 excavator are also upgraded to deliver the best performance. Having smooth, controllable, drive and swing motors makes this excavator one of the best in its class.

This machine runs a hydraulic joystick and control valves which deliver smooth performance for the operator. This type of control is only seen in more expensive machines and is not common in the more economical alternatives. The joystick controls will be familiar to experienced operators and the ability to work the foot peddles to traverse the machine whilst still swinging and working the boom increases efficiency.

Heavy Duty Excavator Construction

The Paddock™ Excavator range are built to the highest specifications with CNC laser cut steel sections making their build and assembly very accurate and ultimately extremely strong. The excavator designs are well proven meaning users are getting a machine that performs to the highest level when it's delivered.

Service and maintenance is simplified with the incorporation of grease injection nipples at pivot points. Access covers to the diesel engine simplifies routine maintenance meaning the excavator is not only simple to operate but also easy to maintain.

Use the power of hydraulics and the heavy duty build design to achieve the most from the Series 10 excavator.

Auxiliary Hydraulics standard

The Series 10 excavators by Paddock™ feature and include as standard axillary hydraulic connections that are easily accessible. This design makes it fast for the operator to switch between attachments that require hydraulics such as the post hole auger driver.

Paddock™ Excavator Uses

Paddock™ excavators have a multitude of uses and experienced operators can achieve more from this machine than the average person would ever believe possible. New operators will quickly feel comfortable with the straightforward controls.

The narrow track width of the Series 10 machine makes it ideal for tight area access. Landscapers who need to access at the rear of houses and via gate access will love the maneuverability, functionality and simplicity.

Plumbers and electricians can excavate their own trenches even through narrow access areas. Pits can be excavated quickly greatly increasing the efficiency over manual labour alternatives. No longer are you waiting or dependent on a subcontractor to dig a trench for you.

Fencing contractors needing to auger holes will be impressed with the effortless digging capabilities once a auger drive kit is connected. The hydraulic motor powers the auger into the ground saving back-straining post hole digging.

Landscapers can easily move bucket loads of material with the Paddock™ series 10 excavator and with the addition of the rock breaker attachment, there's very little this machine can't effortlessly work its way through. With an actuating grapple attachment, rocks, logs and many other objects can be individually grabbed and placed in location.

Excavator Attachments and Accessories

The full functionality of these machines is in the accessories and available attachments. Paddock™ excavators use a common industry attachment design meaning you can buy or rent attachments and interchange depending on the job. Additional attachments can always be purchased later to increase the functionality of the machine.

Each machine comes fitted with a 360mm bucket. Users can then select any additional attachments as optional extras for their particular application.

Buckets for trenching and bulk materials movement

The Series 10 machines can run buckets in 200mm/360mm(included standard with machine) / 600mm size. It is not suggested to use buckets greater than 600mm size due to the reduced performance outside this range. The 200mm bucket size is ideal for deep trenching and a popular choice.

Ripper Attachment

The ripper attachment is ideal for loosening hard ground and busting through tough tree roots. The hardened steel ripper tip is reinforced with heavy steel plates to ensure it can handle the tough work.

Augers for digging holes

The Series 10 excavator is available to order with a quality reduction auger driver that runs up to 300mm augers well. Beware of low cost auger drivers without reductions that don't deliver enough torque and only prove to waste the operators time.

With a reduction driver configuration, users can drive larger diameter augers over 300mm although it's reaching the limits of the machine and overall hole digging speeds will be reduced. If drilling larger diameter holes is a common task the selection of a Series 17 excavator should be considered to optimize performance.

Rock Breaker

Adding a rock breaker attachment allows for large rocks otherwise too large to be moved to be broken into manageable pieces. The breaker can be used for busting up old concrete driveways and footpaths so they can be lifted, pushed and maneuvered with ease. The rock breaker usilises the auxiliary hydraulic connections and attaches via the coupling at the hitch.

Actuating Grapple

The grapple is like a 4 in 1 bucket for your excavator and allows objects to be gripped, lifted, rolled and maneuvered into position. It's ideal for users clearing bush and needing to drag logs and branches. Attaching the grapple takes a little more time as it utilises the excavator's ram to function and therefore needs pins knocked in and out.

Excavator Rake

The rake attachment is ideal for forestry work where green waste is to be piled for decomposition or burning. The rake can be used for clearing problem vegetation such as lantana.

Don't Compromise Quality

When working with machinery, equipment quality should not be compromised, cheap copy machines breakdown costing you money. Paddock only use the highest quality materials making them a machine for life.

Paddock Series 10 Excavator Specifications

SPEX10SS
Bucket Excavating Force
6.5 kN
Lifting Capacity 50kg w/ extended boom

150kg w/ folded boom
Engine

11 hp

KOOP 192 FA 1 Cylinder Air Cooled Diesel Engine

Electric key start

5.5L fuel tank

Machine Weight
1,000 kg
Electrical System 12V
Controls

Hydraulic Joystick and Control Valves for the main digging and swing functions

Hydraulic System

20L/min / 18 MPA

Air Cooled

Drive System

2-3 km/hr

Dual levers and drive pedal design

Included Attachments 360mm Bucket
Max. Digging Depth
1,500mm
Max. Digging Radius
2,450mm
Max. Digging Height
2,500mm
Max. Dumping Height
1,820mm
Chassis Width
940mm
Track Length
1,200mm
Chassis Ground Clearance
380mm
Gradeability
30 degrees
Transport Dimensions

2,200mm L

940mm W

2,150mm H

Warranty 2yr warranty
Excavator Service and Maintenance

The Paddock Excavator is designed to have trouble free and easy maintenance. Like any small engine the oil will require changing at predetermined intervals. The hydraulic fluids will require monitoring and periodic replacement also. Grease nipples are present across the machine and it's recommended as part of your daily pre-start checks a small amount of grease be added to the pivots to ensure a long operating life. Very limited mechanical knowledge is required to maintain these machines.

SHIPPING INFORMATION:

This item can be shipped Australia wide and is also available for pick up from our Brisbane warehouse. This item has a shipping weight of over 1,000kg. We advise contacting us for a freight quote to your location. A fork lift will be required at the receiver's location for unloading otherwise we'll need to quote on a tail lift truck for delivery.
